Rectangular Frame System

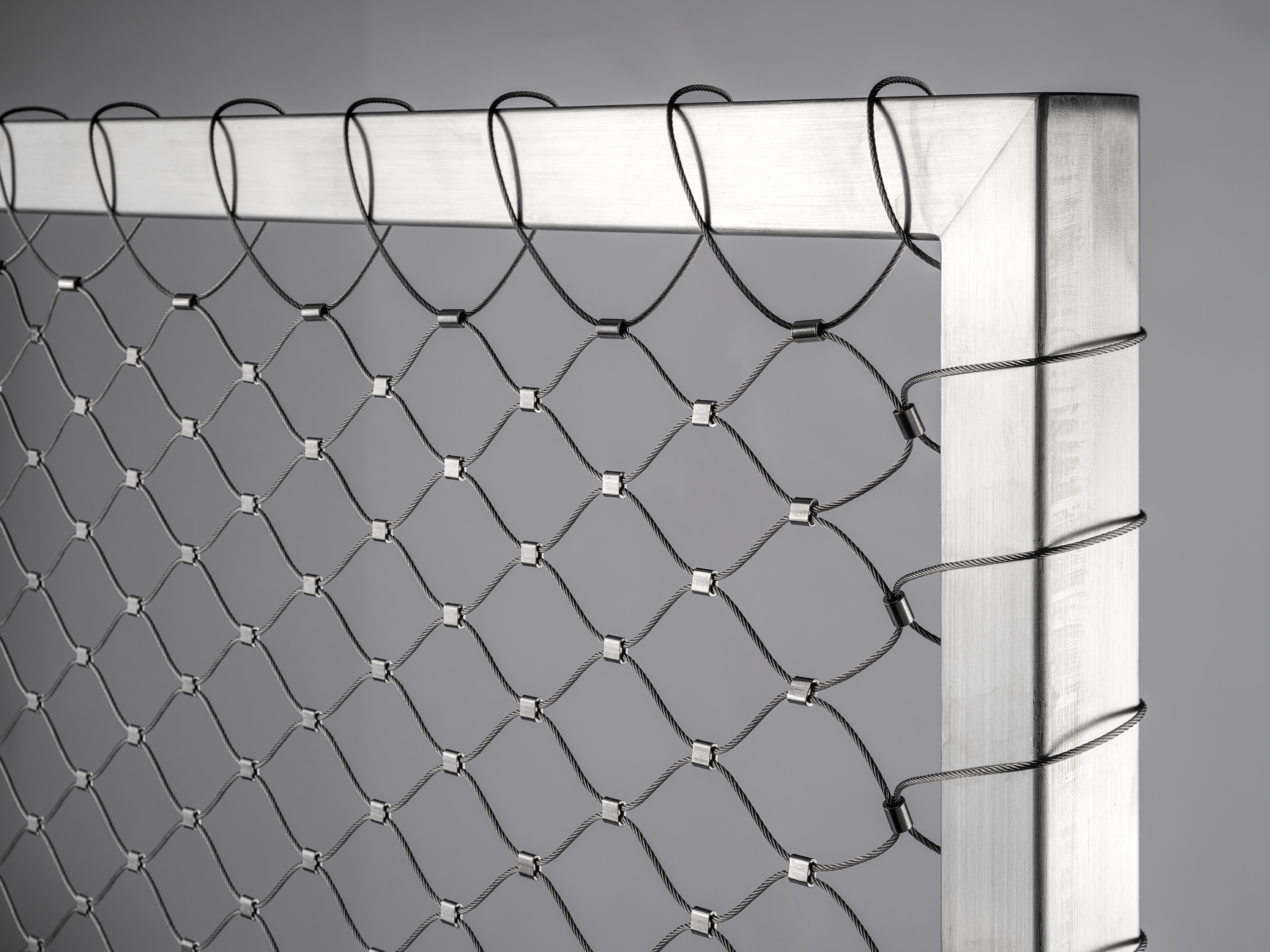

inoxnet^® standard square tube frame systems are produced from various dimensioned stainless steel square tubes. Frames produces from square tubes can are possible in rectangular and parallelogram shapes. Stainless steel mesh is fixed by winding the installation cable around the square tube which makes the cable visible around the frame. They are easy to install, economical, and durable.

Tube Dimensions

20x20mm, 25x25mm and 30x30mm
Special diameters can be also accommodated based on projects requirements.

I-NET^® Cable Mesh Opening

Rope diameter: 1,5mm, 2mm, 3mm
Balustrade Systems: 25-80mm
Safety Net Systems: 80-120mm
Greenery Systems: 120-180mm

I-NET^® Cable Mesh Diamond Direction

Horizontal and Vertical

Frame Finishes

Satin finished
Mirror polished
Custom RAL codes upon request

Additional Features

Half-eye configuration available
Low corrosion risk ensures long-lasting performance
(frame tubes are entirely closed)

Limitations

Visible installation cable (only for design purpose)
Limited geometry
