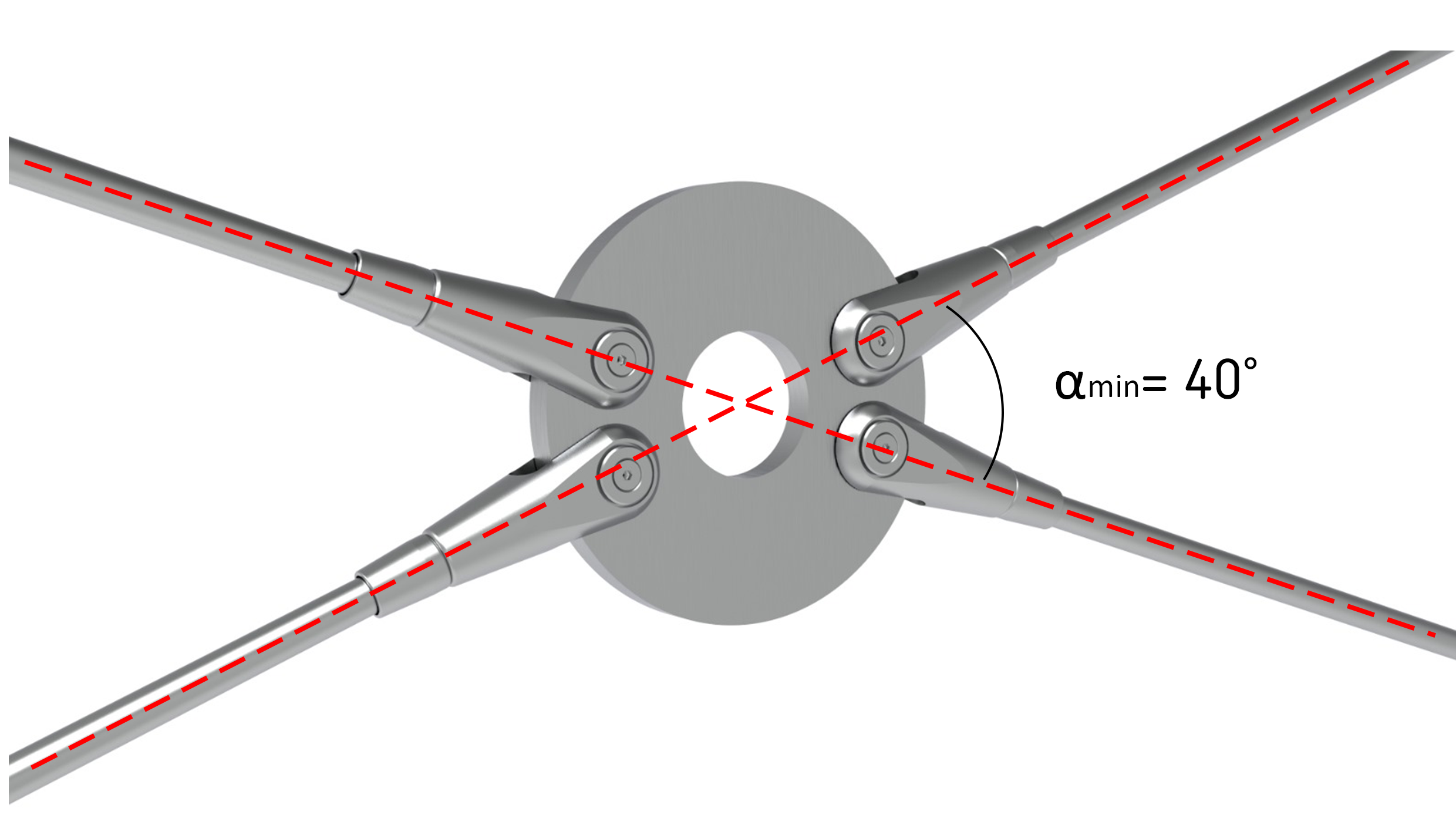

Connection Disc

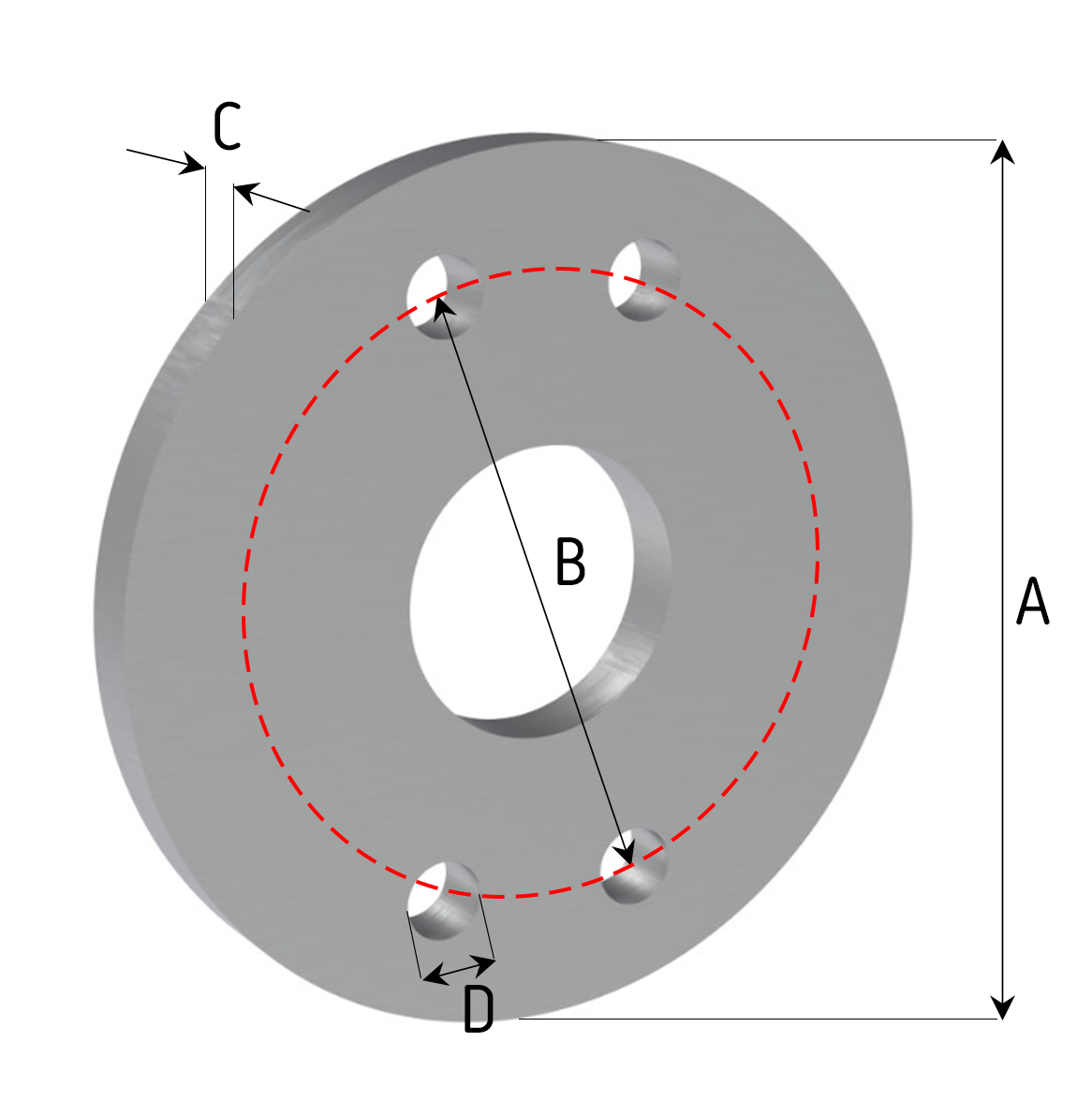

| Part Number | A | B | C | D | E |
|---|---|---|---|---|---|
| Thread | mm | mm | mm | mm | |
| IRD-640-010-00 | M10 | 120 | 87 | 10 | 11 |
| IRD-640-012-00 | M12 | 150 | 108 | 10 | 14 |
| IRD-640-016-00 | M16 | 187 | 130 | 12 | 19 |
| IRD-640-020-00 | M20 | 233 | 170 | 15 | 21 |
| IRD-640-024-00 | M24 | 281 | 200 | 20 | 27 |
| IRD-640-027-00 | M27 | 317 | 230 | 20 | 29 |
| IRD-640-030-00 | M30 | 343 | 250 | 20 | 31 |
