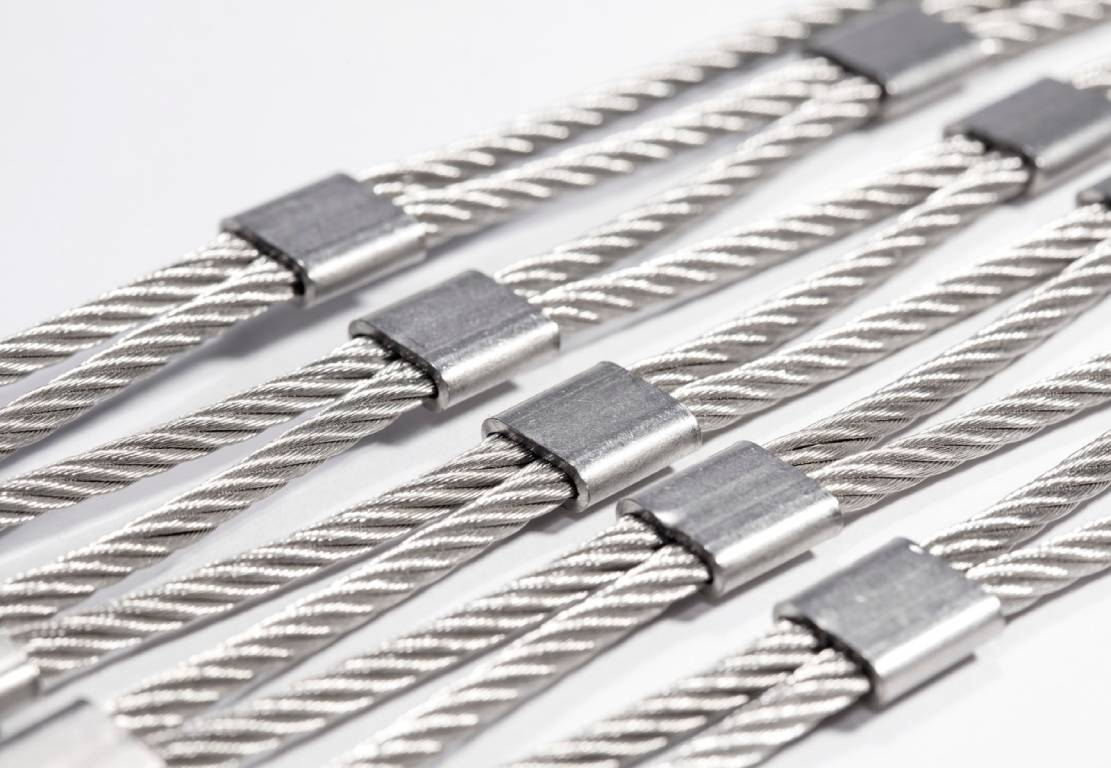

I-NET^® Duplex / Enhanced Corrosion Resistance for Demanding Environments

I-NET^® Duplex is designed for projects exposed to demanding environmental conditions. By combining I-NET^® system engineering with duplex stainless steel (1.4462 / AISI 318LN), it provides increased corrosion resistance and long-term durability.

Key Advantages:

High corrosion resistance for aggressive environments
Extended service life with reduced maintenance requirements
Engineered and manufactured according to inoxnet^® quality standards

Applications:
Bridges, road infrastructure, coastal structures, urban infrastructure and industrial facilities.

Note on Use:
Use in environments with high concentrations of free chlorine or aggressive chemicals should be carefully evaluated.
A project-specific technical assessment is recommended.

I-NET^® General Infos

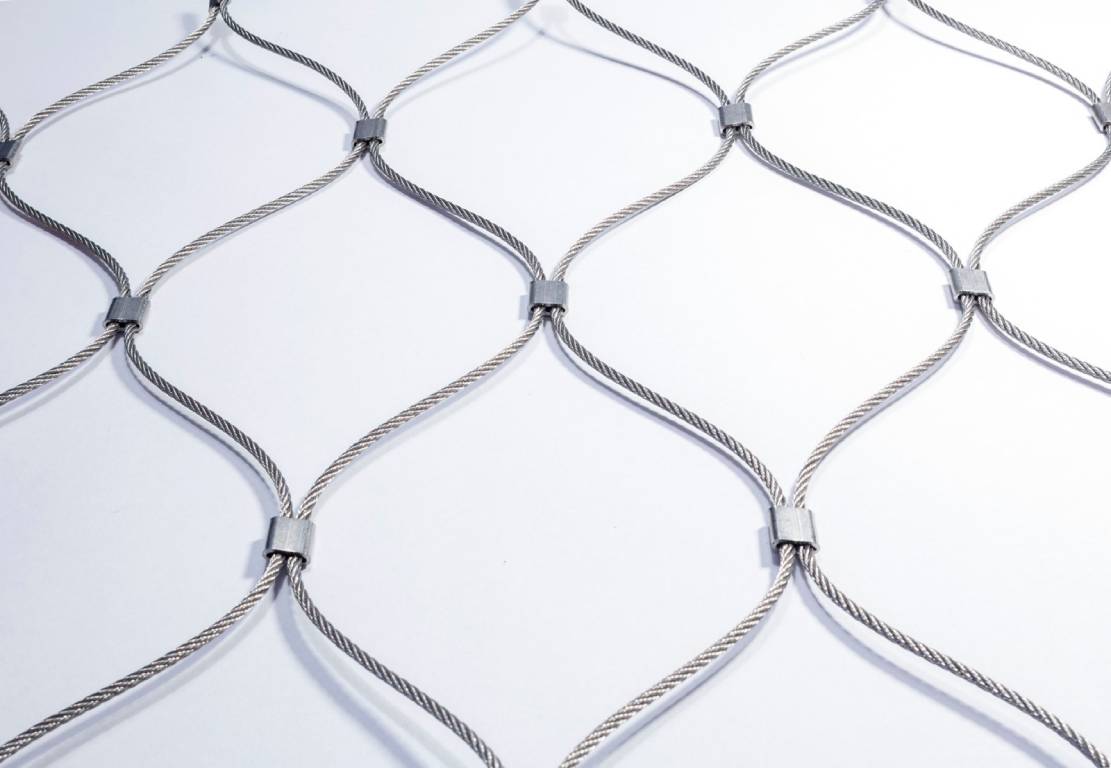

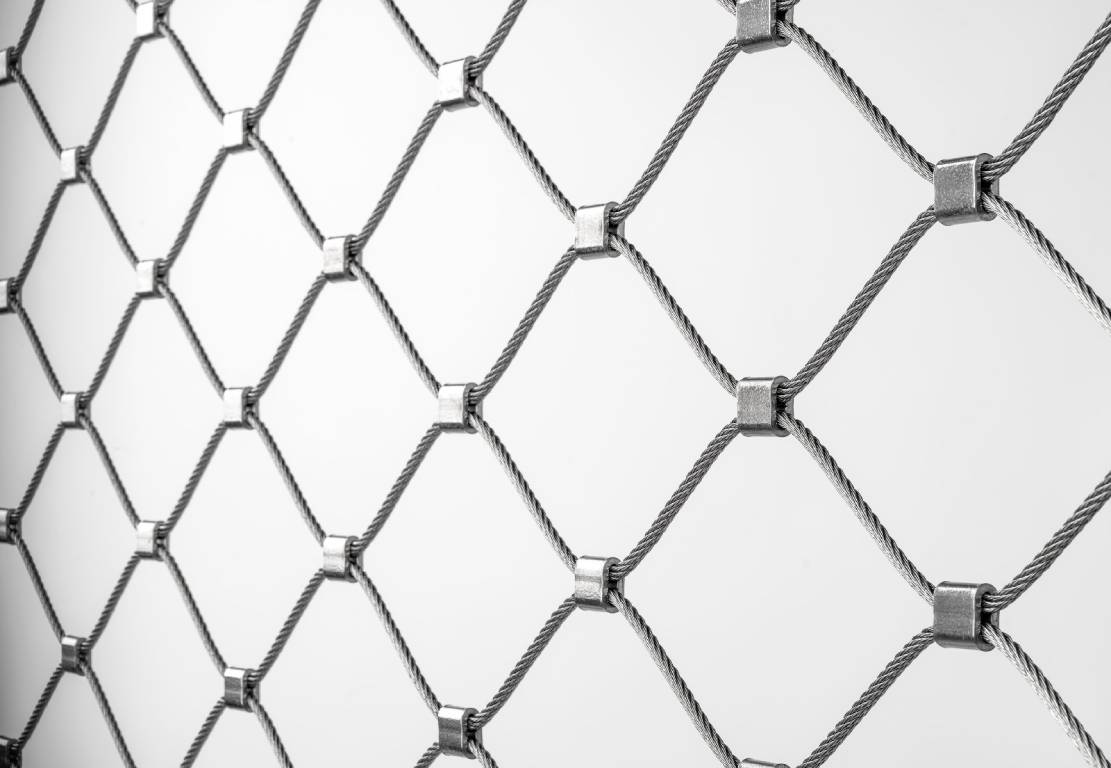

Explore I-NET^® cable mesh, featuring net dimensions from 25mm to 200mm, manufactured with premium AISI316 and duplex stainless steel wires in diameters of 1.5mm, 2mm, and 3mm.

Technical Detail

I-NET^® Opening

The opening angle of the I-NET^® is important for shaping the overall view of projects utilizing I-NET^® Systems. The typical 60° angle is ideal as it maintains an aesthetically pleasing appearance. Angles less than 60° create a denser effect, while angles greater than 60° impose significant stress on the ropes and edges of the ferrules.

Technical Detail

I-NET^® Types

inoxnet^® offers a diverse selection of I-NET^® types based on diamond direction and ending possibilities. There are three applicable diamond directions: Horizontal, Vertical, and Parallelograms, each with distinct appearances and characteristics. The choice of direction is influenced by safety requirements, architectural and visual aspects, structural needs, and border geometry.

Technical Detail

Tool Box

According to customer preference, inoxnet^® Stainles Steel Ropes and Net Systems can be installed on-site by our experienced installation team. The installation of cable mesh can also be done through self-assembly by our customers, using some auxiliary tools. For this purpose, we provide installation training, support,and supervision.

Technical Detail
