Frame Holders

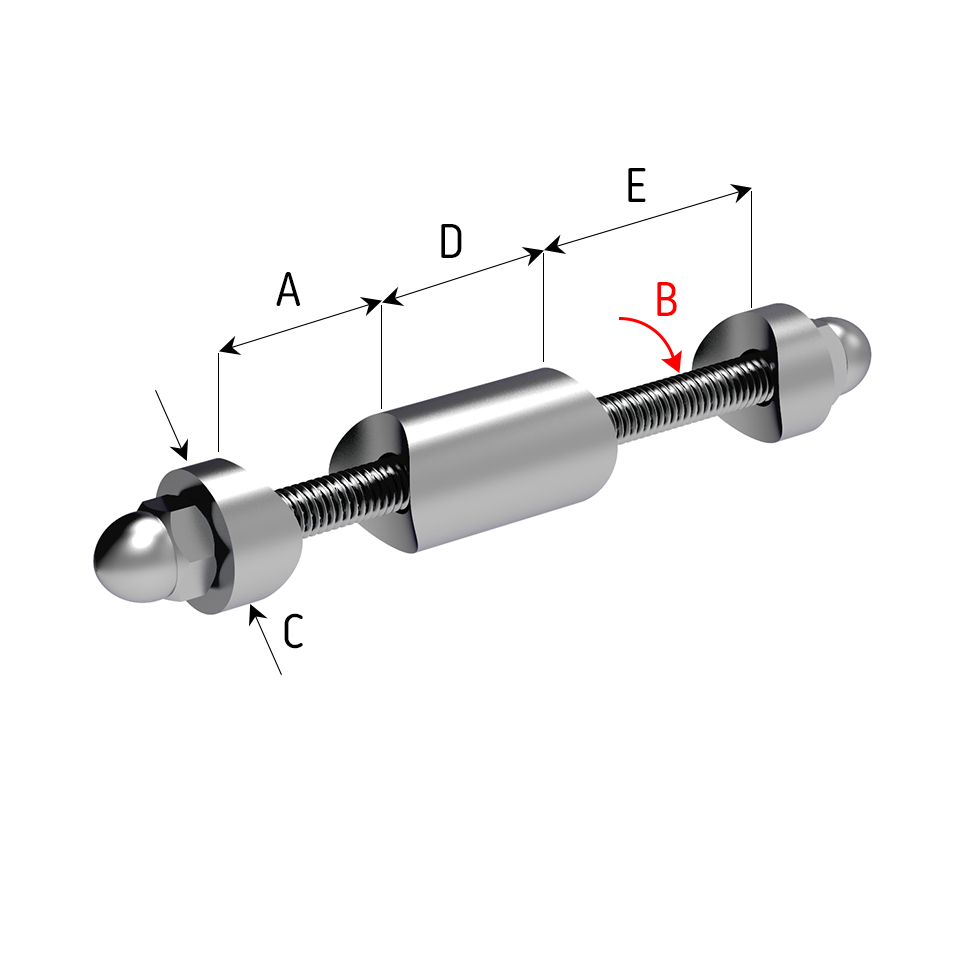

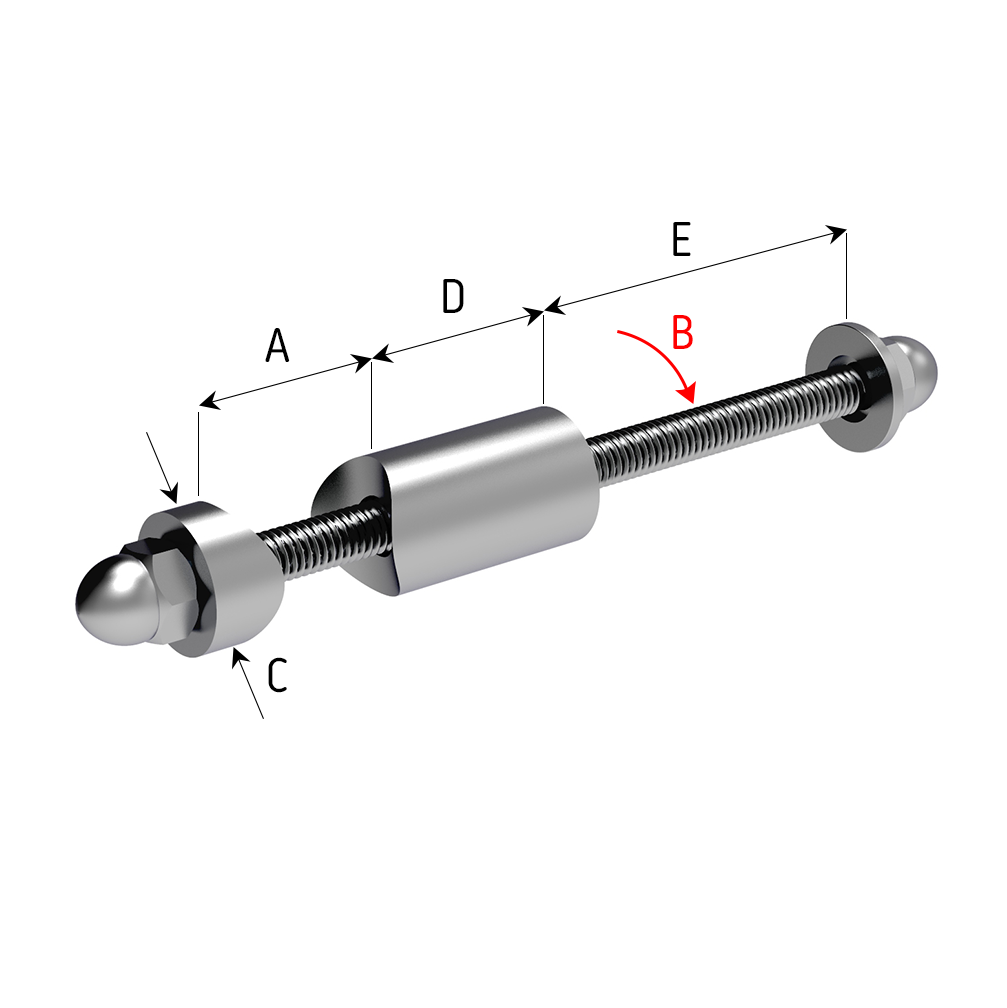

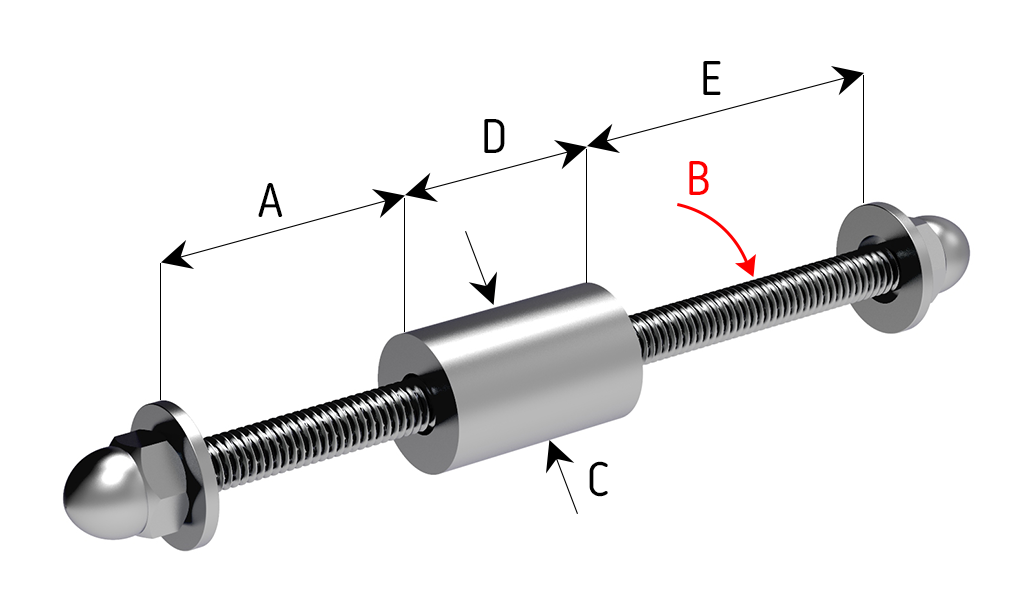

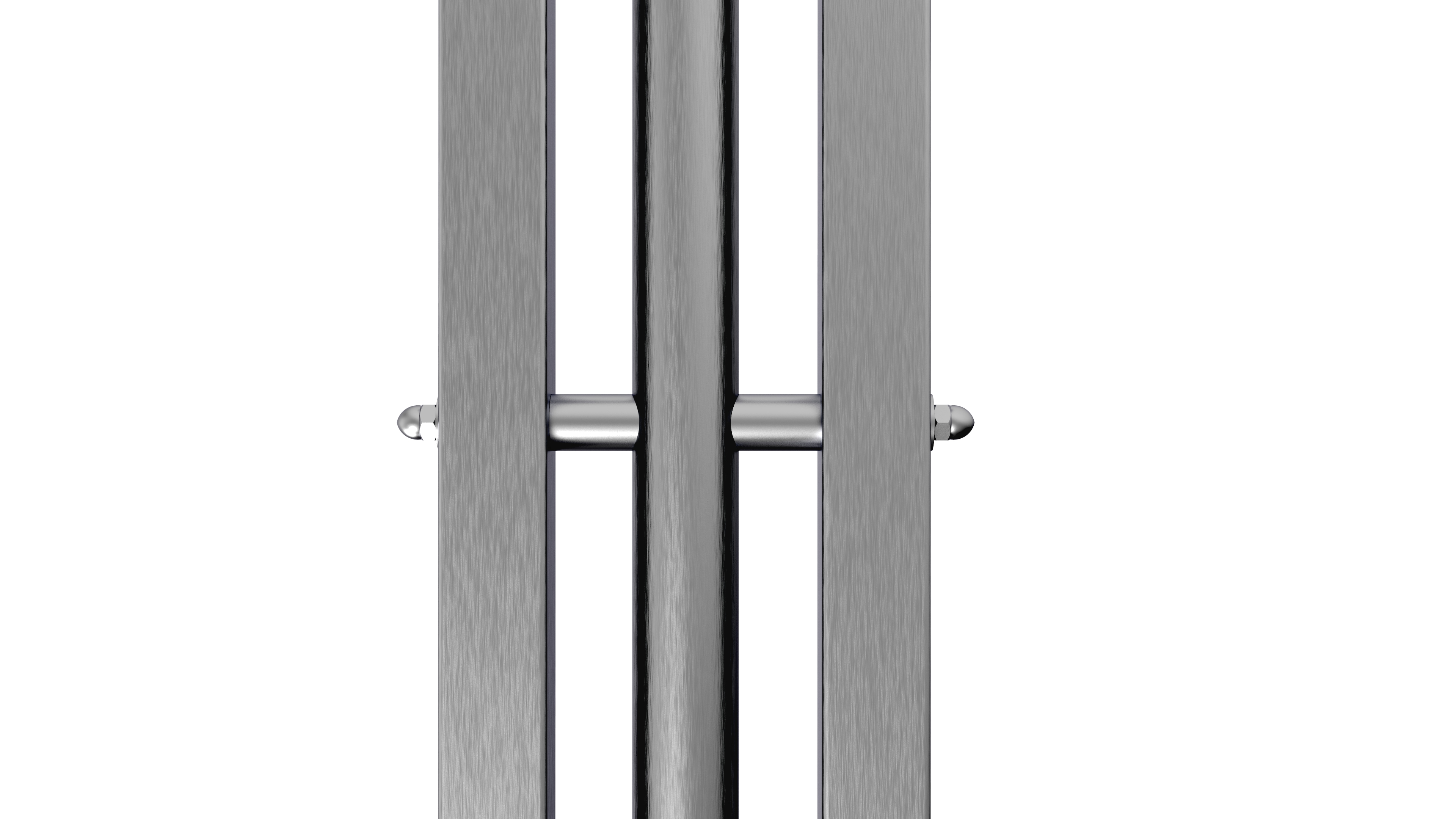

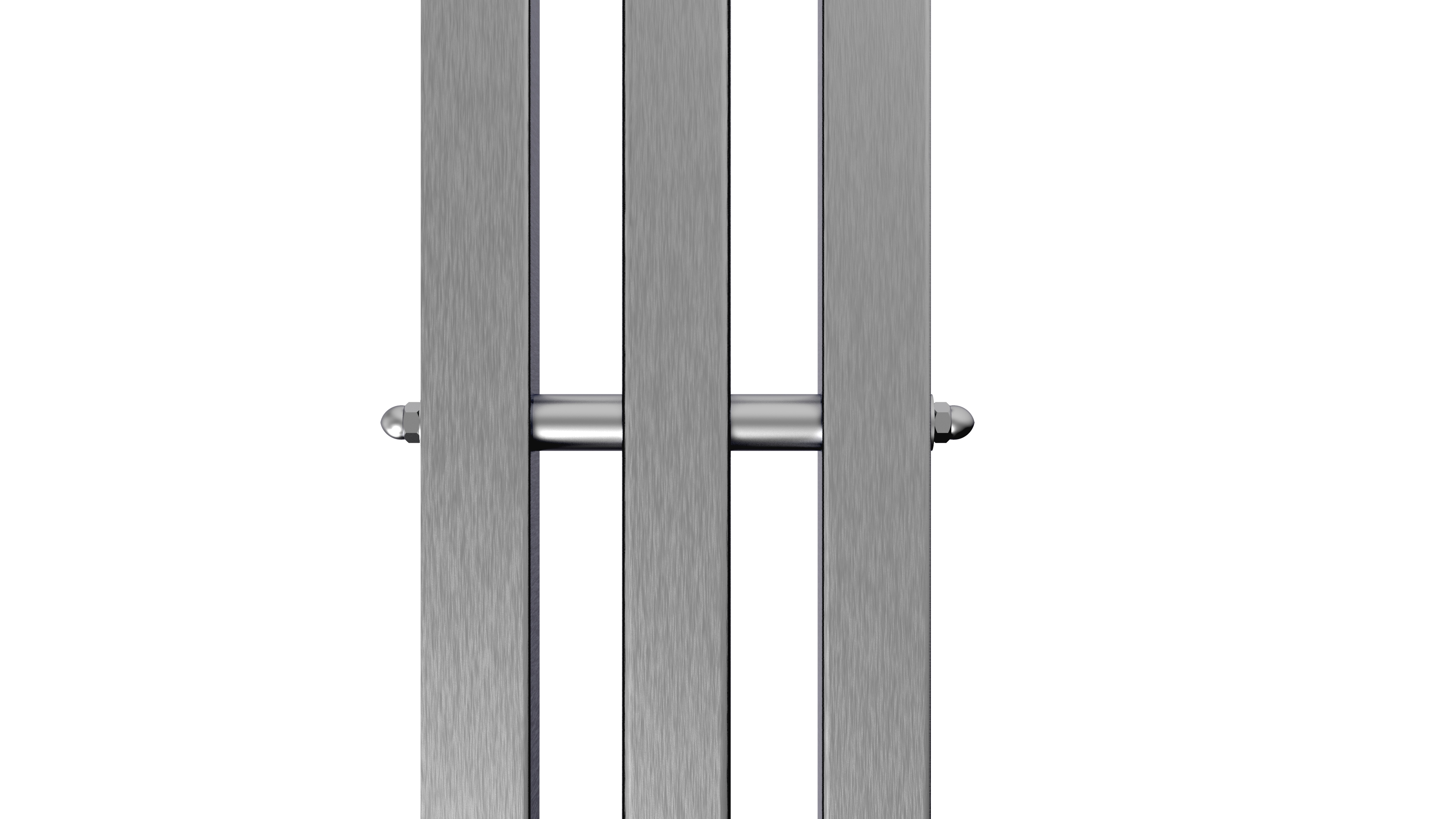

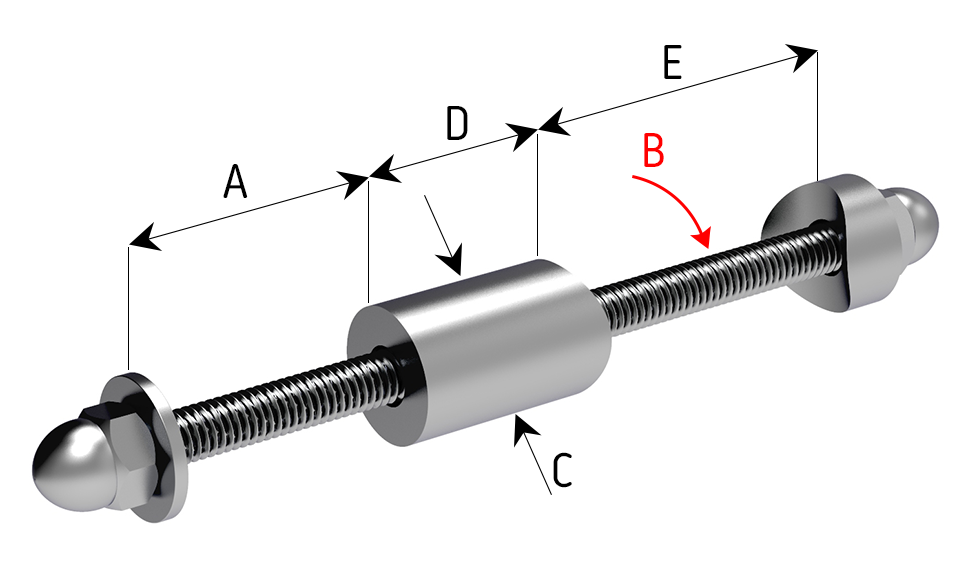

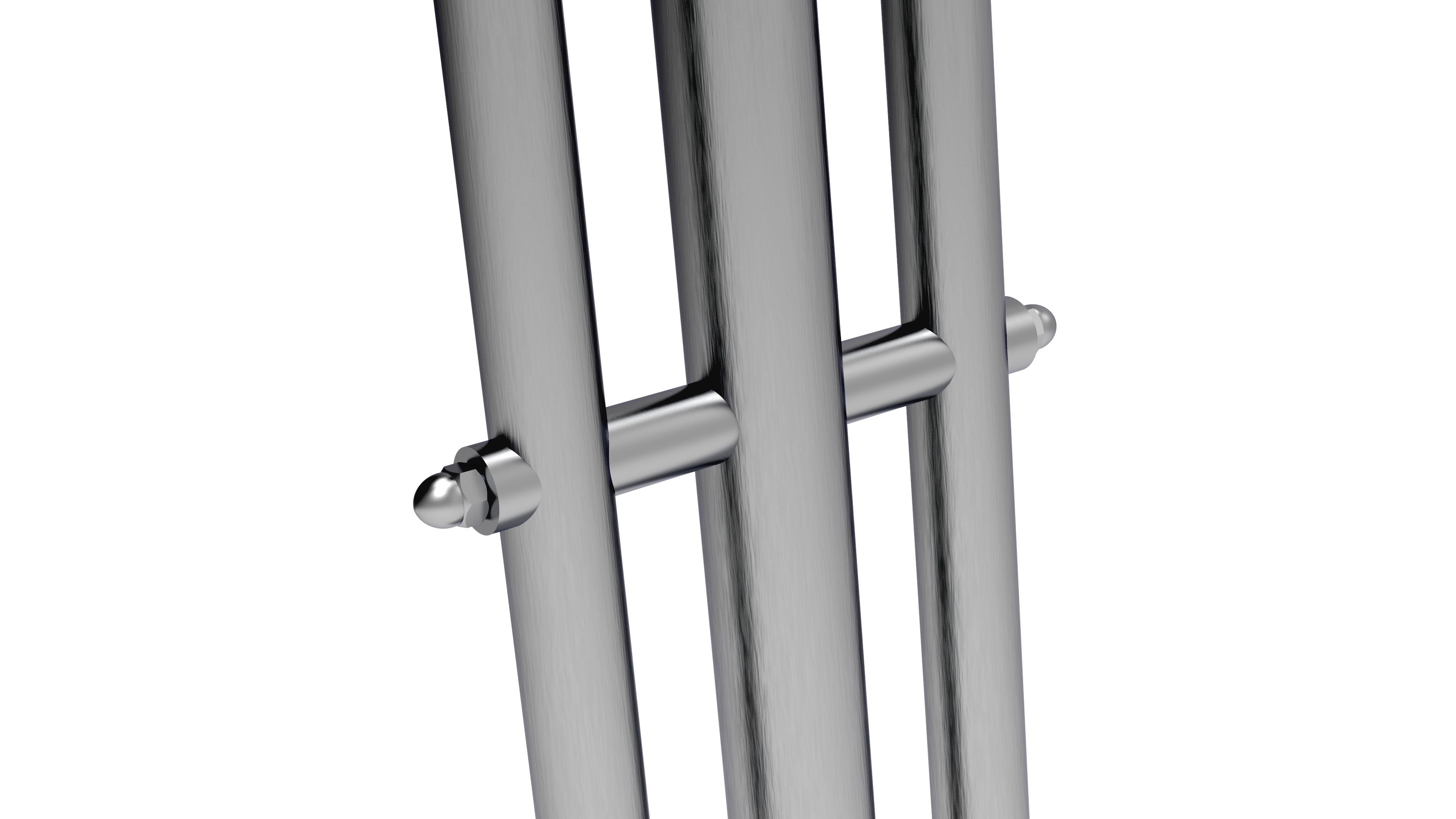

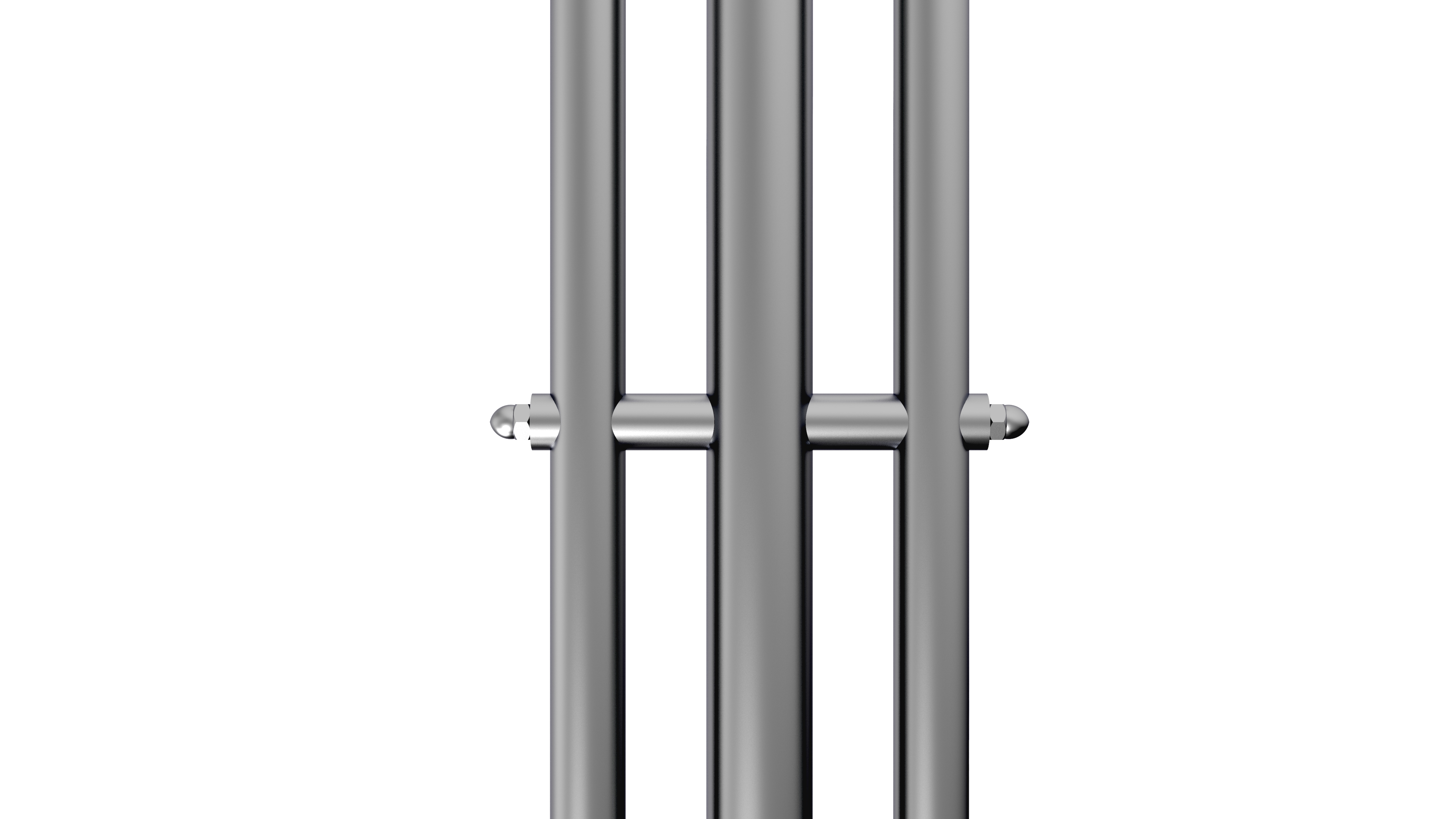

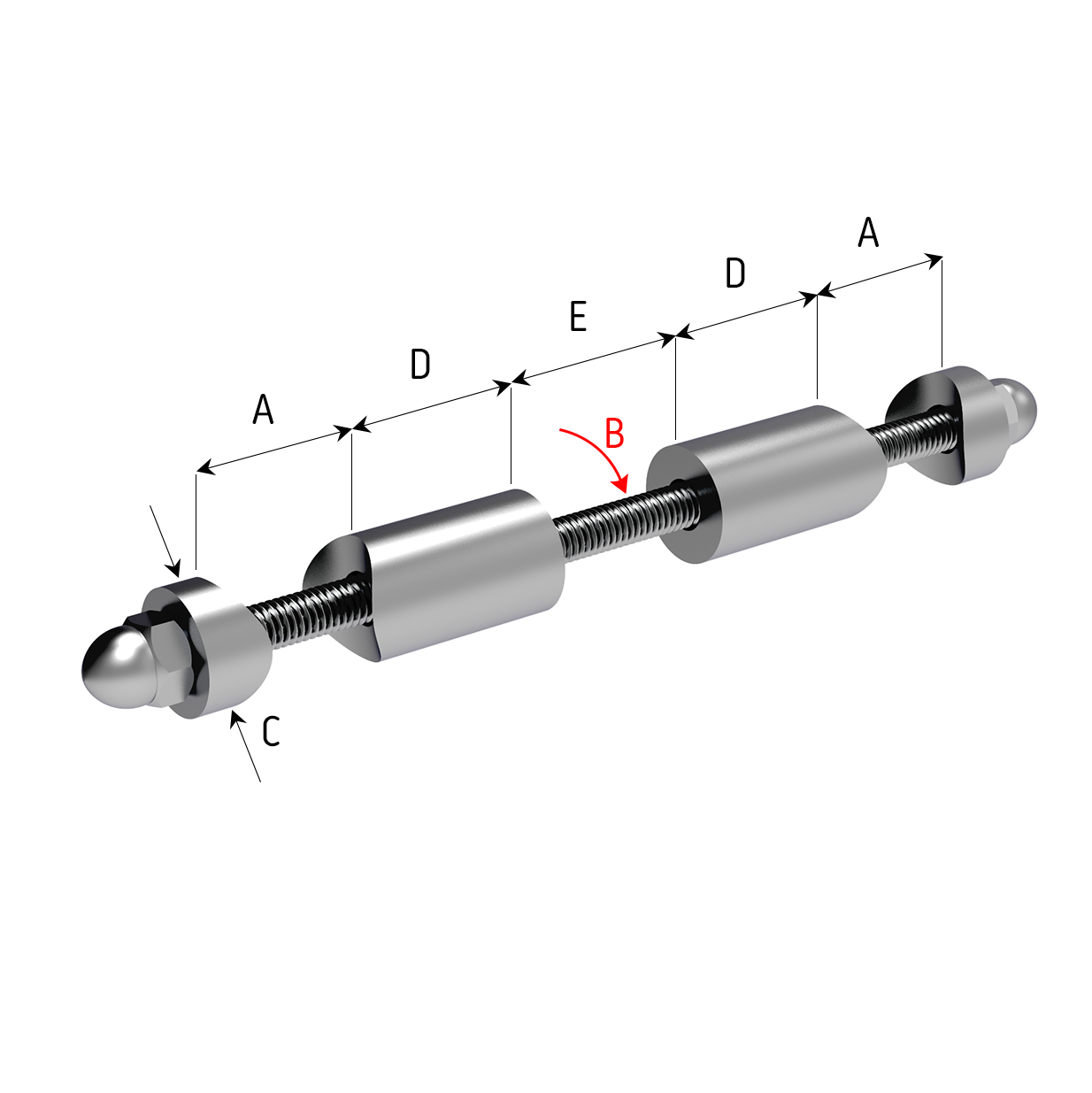

Round Frame Holder Type 1 / For Round Posts / Single Side


Part Number Frame Dia B C D Post Profile / E
A mm mm mm mm
IN-FH1-0021-033-01 Ø21,3 M6 16 25 Ø33,7
IN-FH1-0021-042-01 Ø21,3 M6 16 25 Ø42,4
IN-FH1-0026-033-01 Ø26,9 M6 16 25 Ø33,7
IN-FH1-0026-042-01 Ø26,9 M6 16 25 Ø42,4
IN-FH1-0033-033-01 Ø33,7 M8 20 25 Ø33,7
IN-FH1-0033-042-01 Ø33,7 M8 20 25 Ø42,4
IN-FH1-0042-033-01 Ø42,4 M8 20 25 Ø33,7
IN-FH1-0042-042-01 Ø42,4 M8 20 25 Ø42,4
Material AISI 316 L

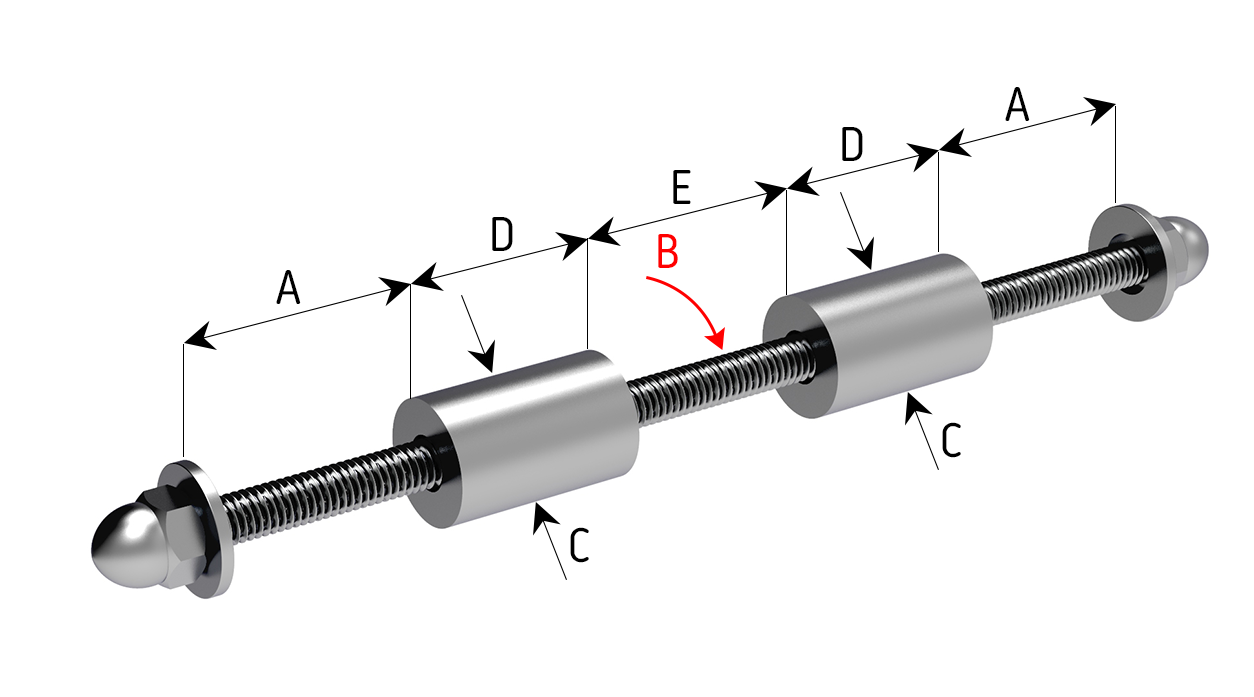

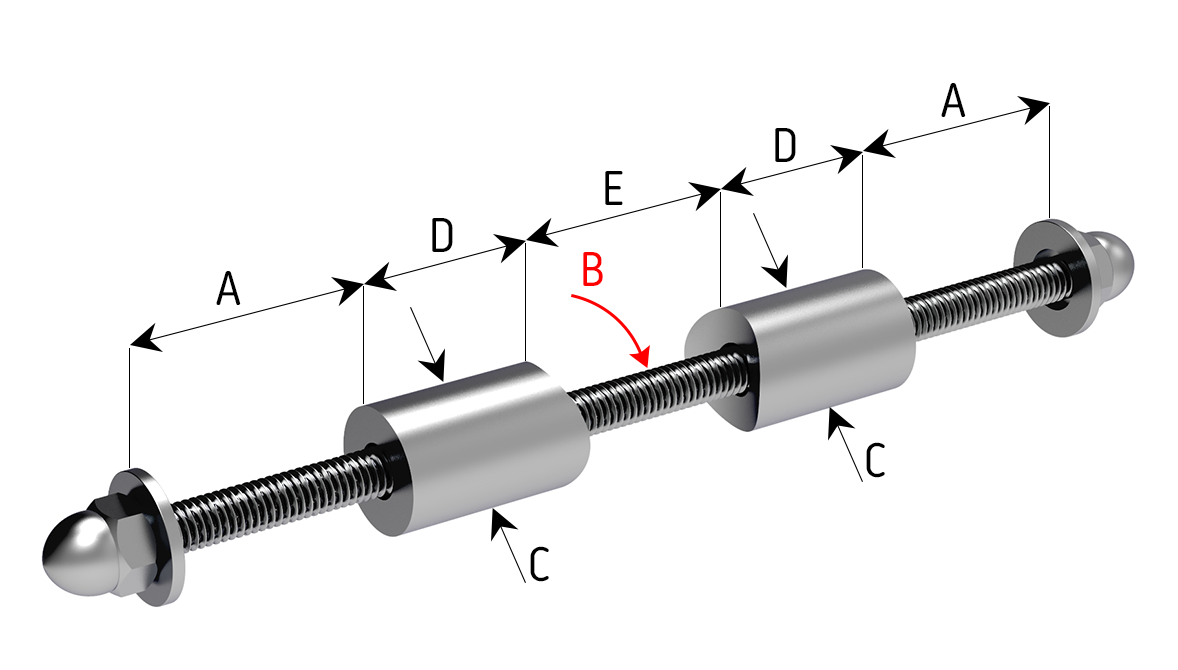

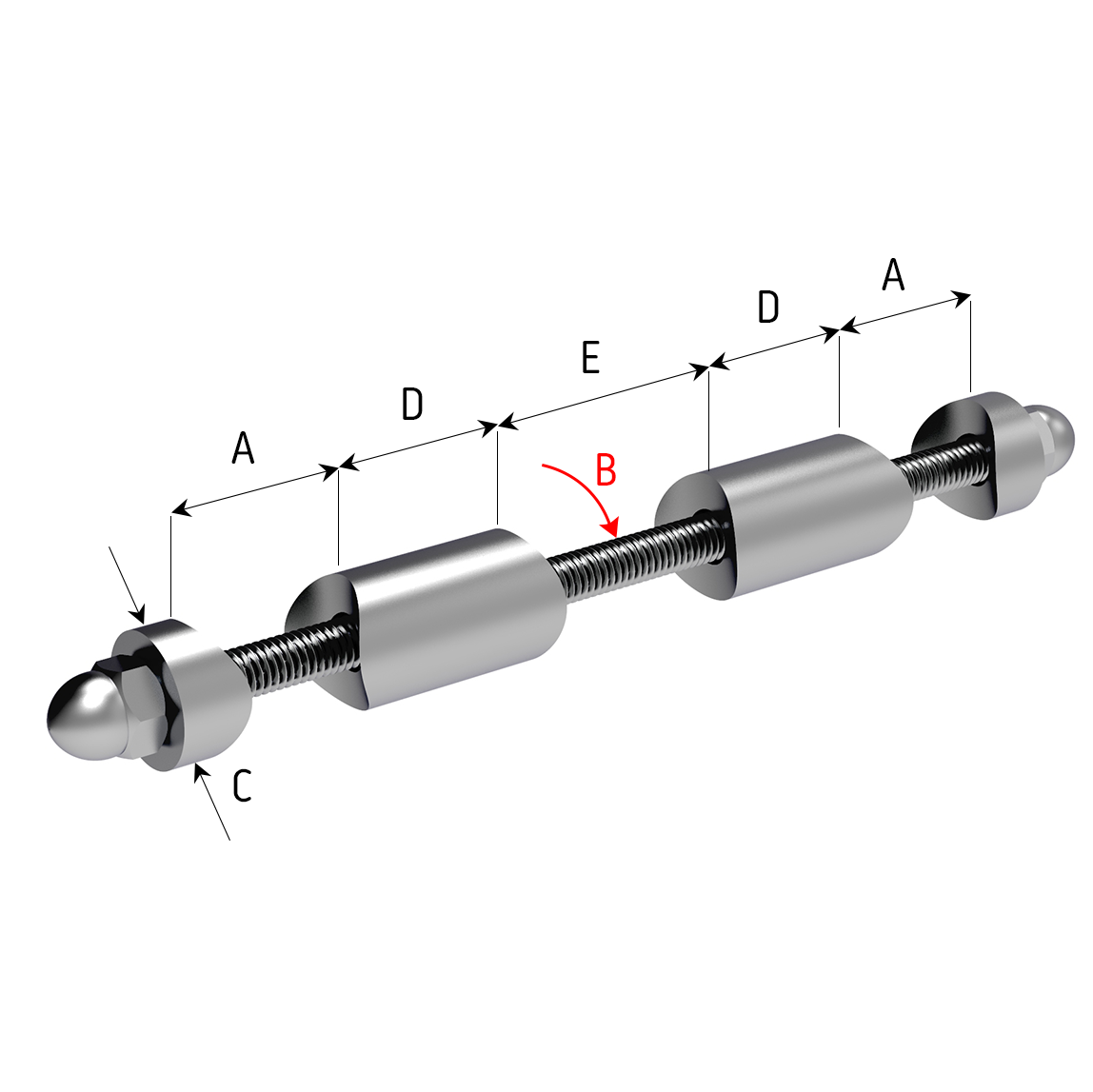

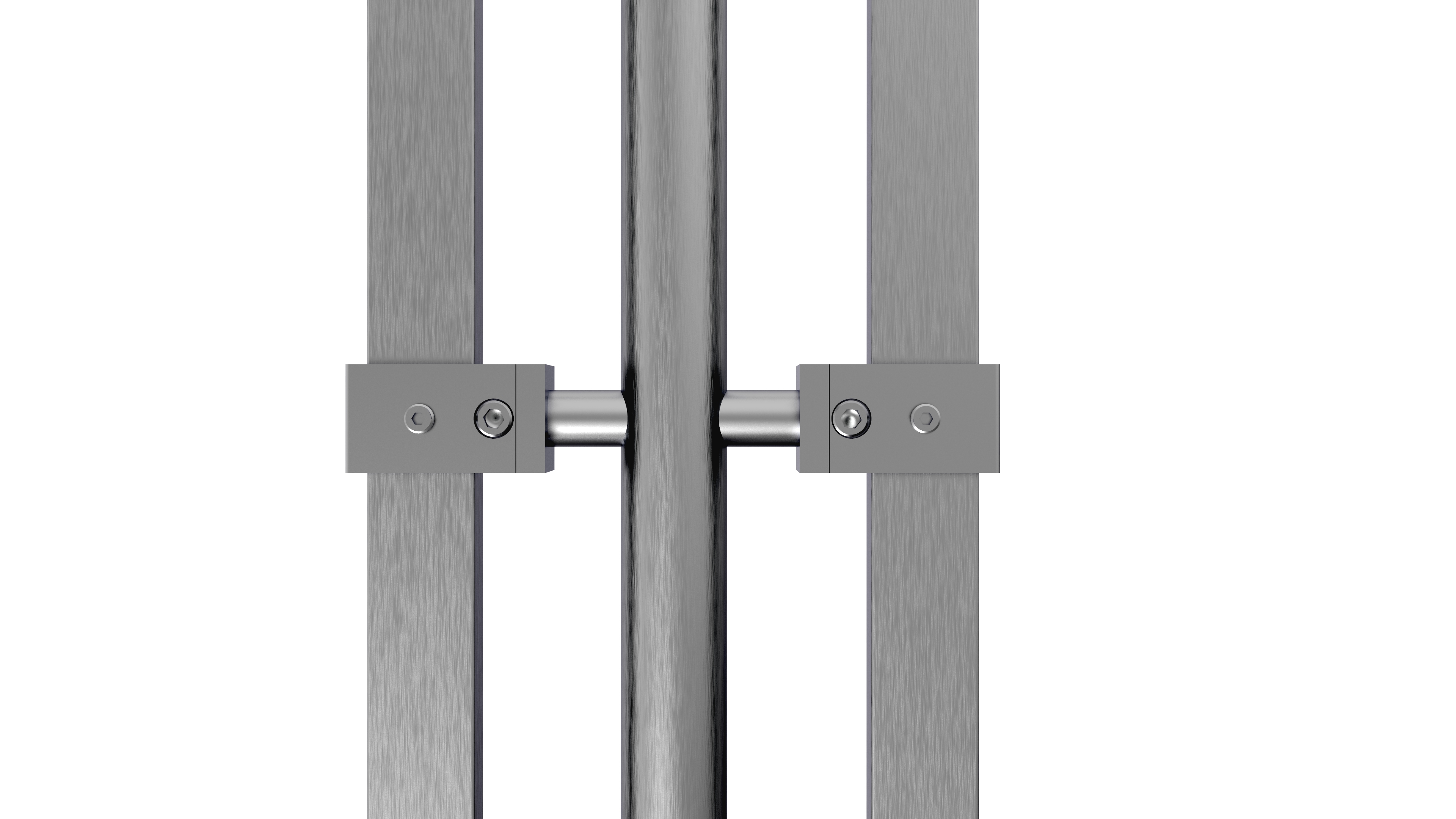

Round Frame Holder Type 1 / For Round Posts / Double Side


Part Number A B C D E
A mm mm mm mm
IN-FH1-0021-033-02 Ø21,3 M6 16 25 Ø33,7
IN-FH1-0021-042-02 Ø21,3 M6 16 25 Ø42,4
IN-FH1-0026-033-02 Ø26,9 M6 16 25 Ø33,7
IN-FH1-0026-042-02 Ø26,9 M6 16 25 Ø42,4
IN-FH1-0033-033-02 Ø33,7 M8 20 25 Ø33,7
IN-FH1-0033-042-02 Ø33,7 M8 20 25 Ø42,4
IN-FH1-0042-033-02 Ø42,4 M8 20 25 Ø33,7
IN-FH1-0042-042-02 Ø42,4 M8 20 25 Ø42,4
Material AISI 316 L


Round Frame Holder Type 1 / For Flat Posts / Single Side


Part Number A B C D E
A mm mm mm mm
IN-FH1-0021-000-01 Ø21,3 M6 16 25 variable
IN-FH1-0026-000-01 Ø26,9 M6 16 25 variable
IN-FH1-0033-000-01 Ø33,7 M8 20 25 variable
IN-FH1-0042-000-01 Ø42,4 M8 20 25 variable
Material AISI 316 L
Dimension E is variable for 5mm to 50mm posts.


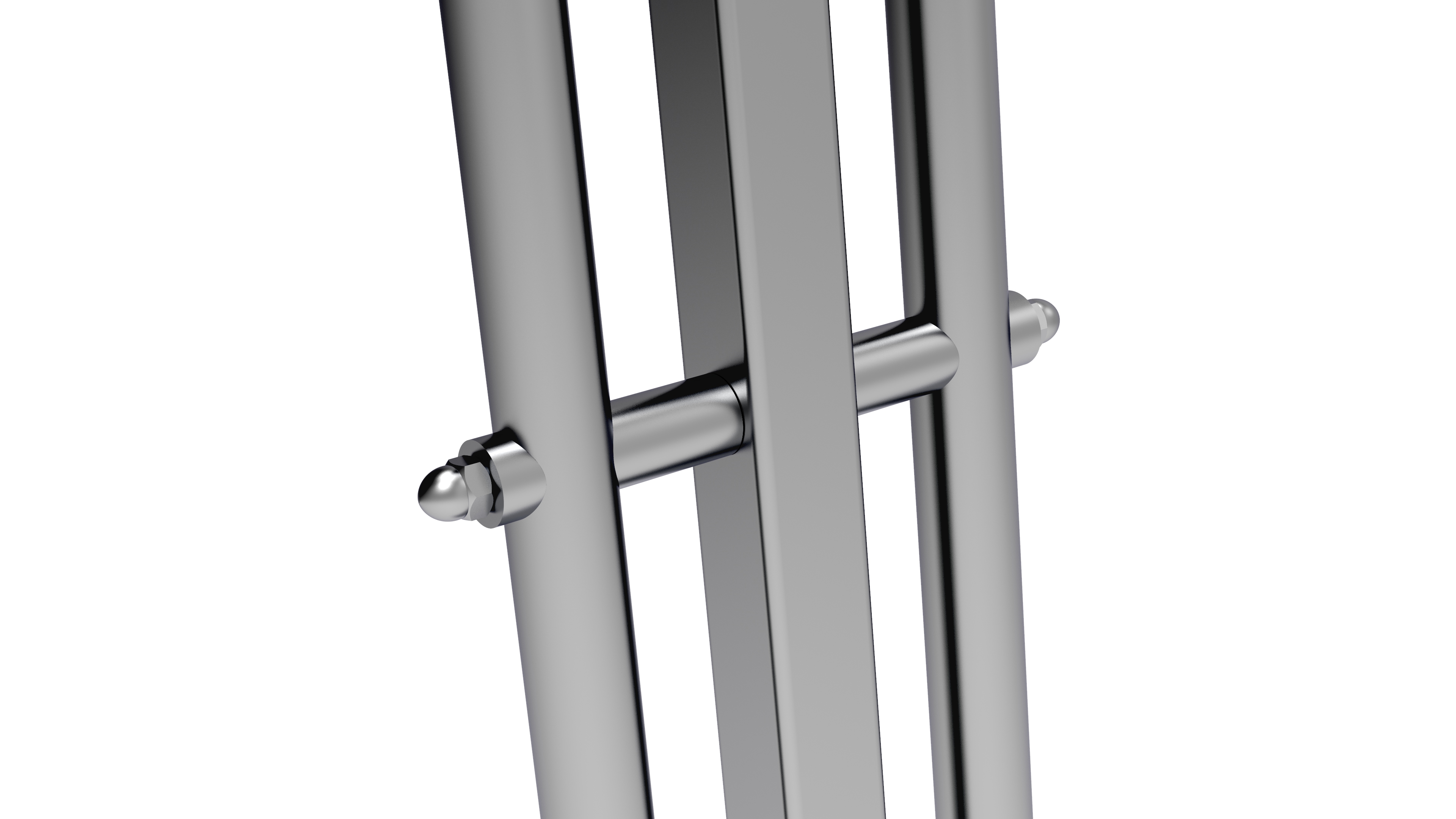

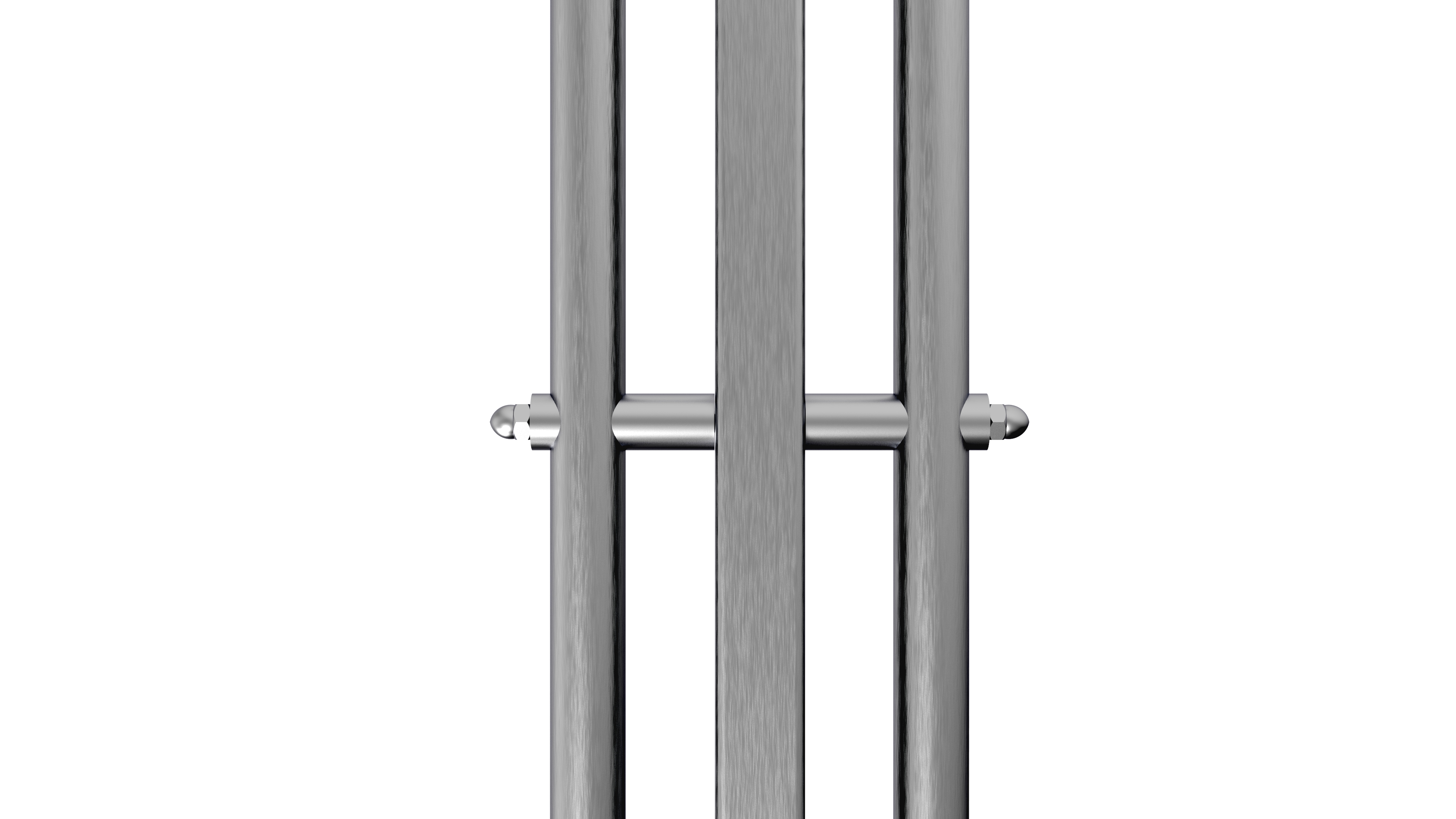

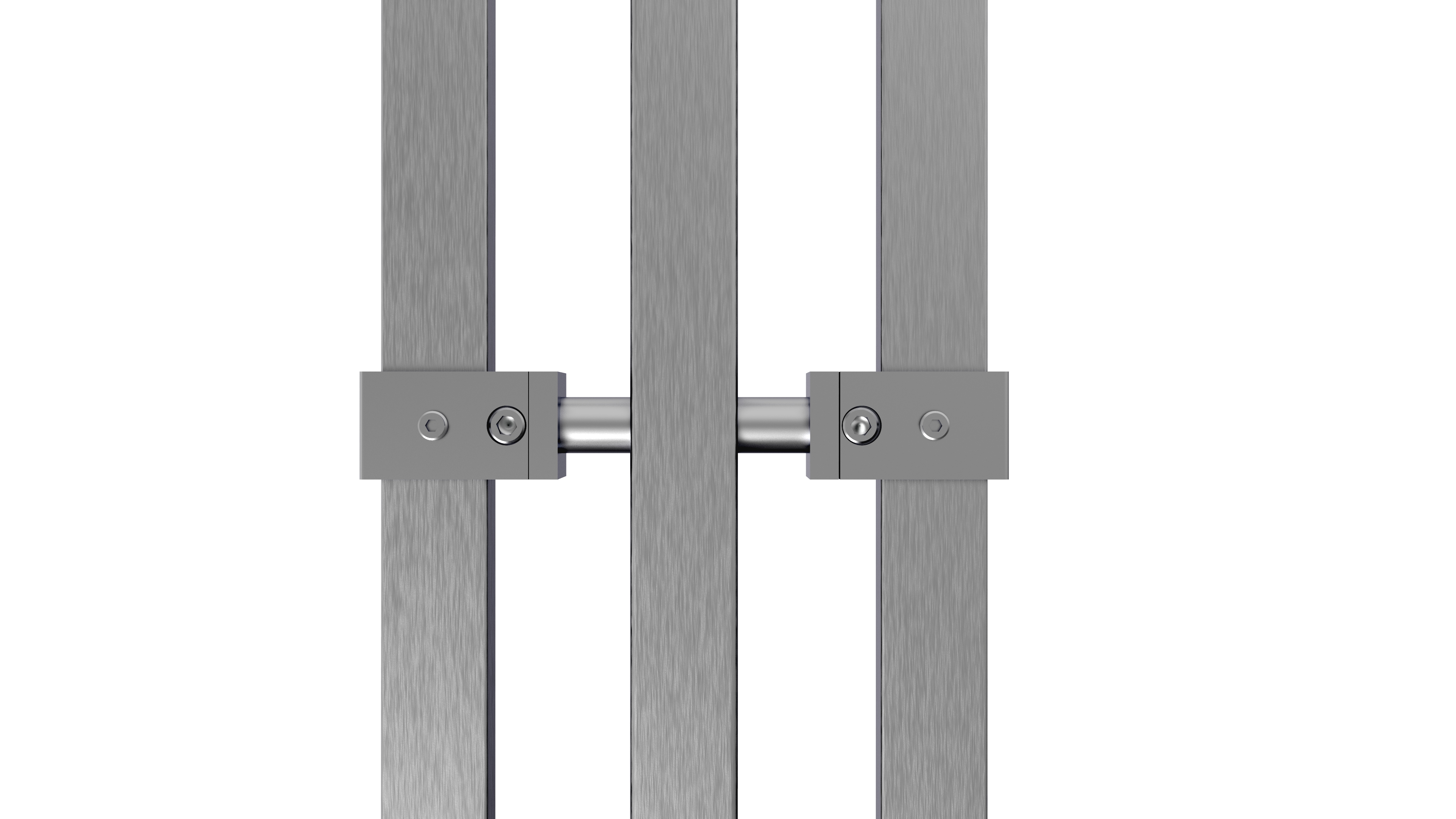

Round Frame Holder Type 1 / For Flat Posts / Double Side


Part Number A B C D E
A mm mm mm mm
IN-FH1-0021-000-02 Ø21,3 M6 16 25 variable
IN-FH1-0026-000-02 Ø26,9 M6 16 25 variable
IN-FH1-0033-000-02 Ø33,7 M8 20 25 variable
IN-FH1-0042-000-02 Ø42,4 M8 20 25 variable
Material AISI 316 L
Dimension E is variable for 5mm to 50mm posts.

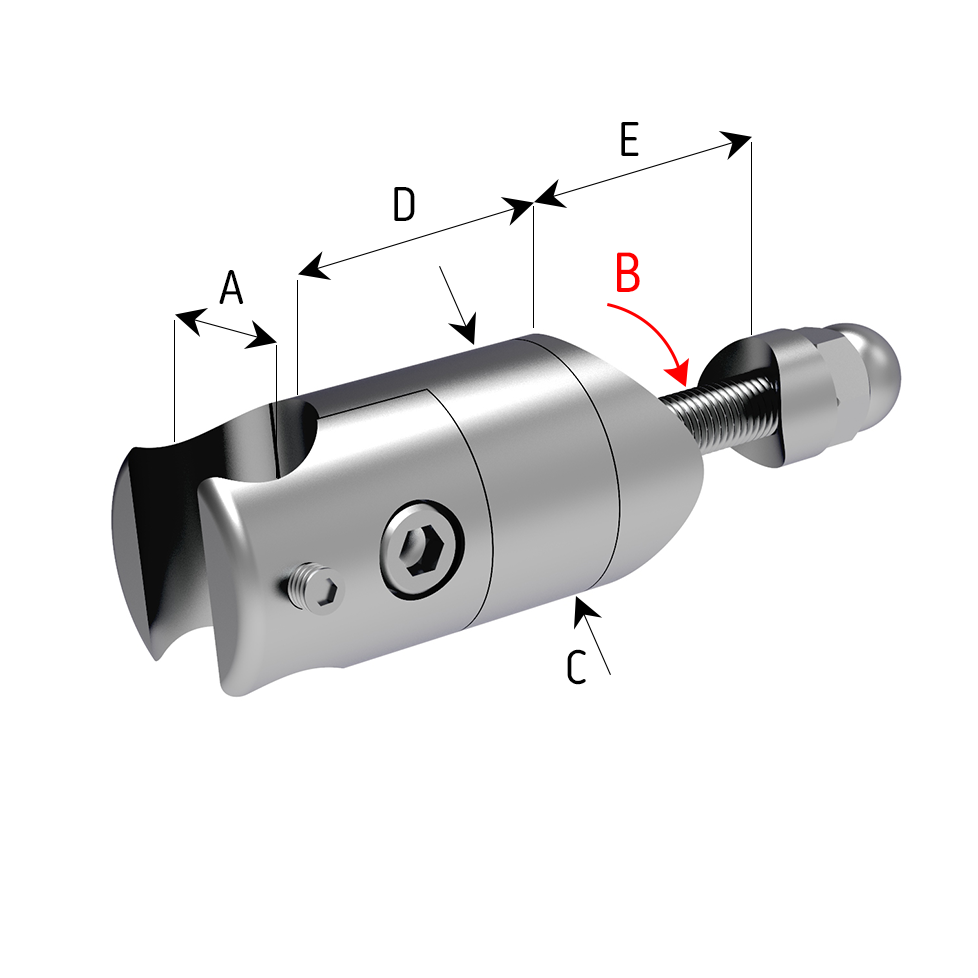

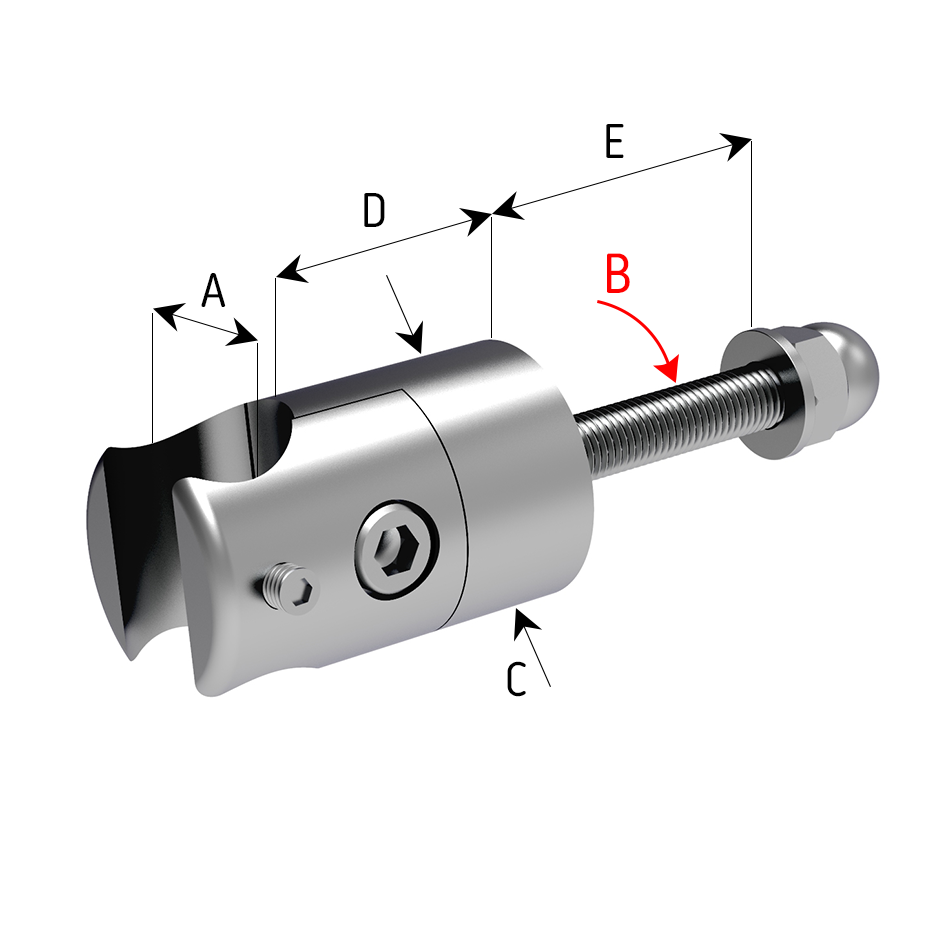

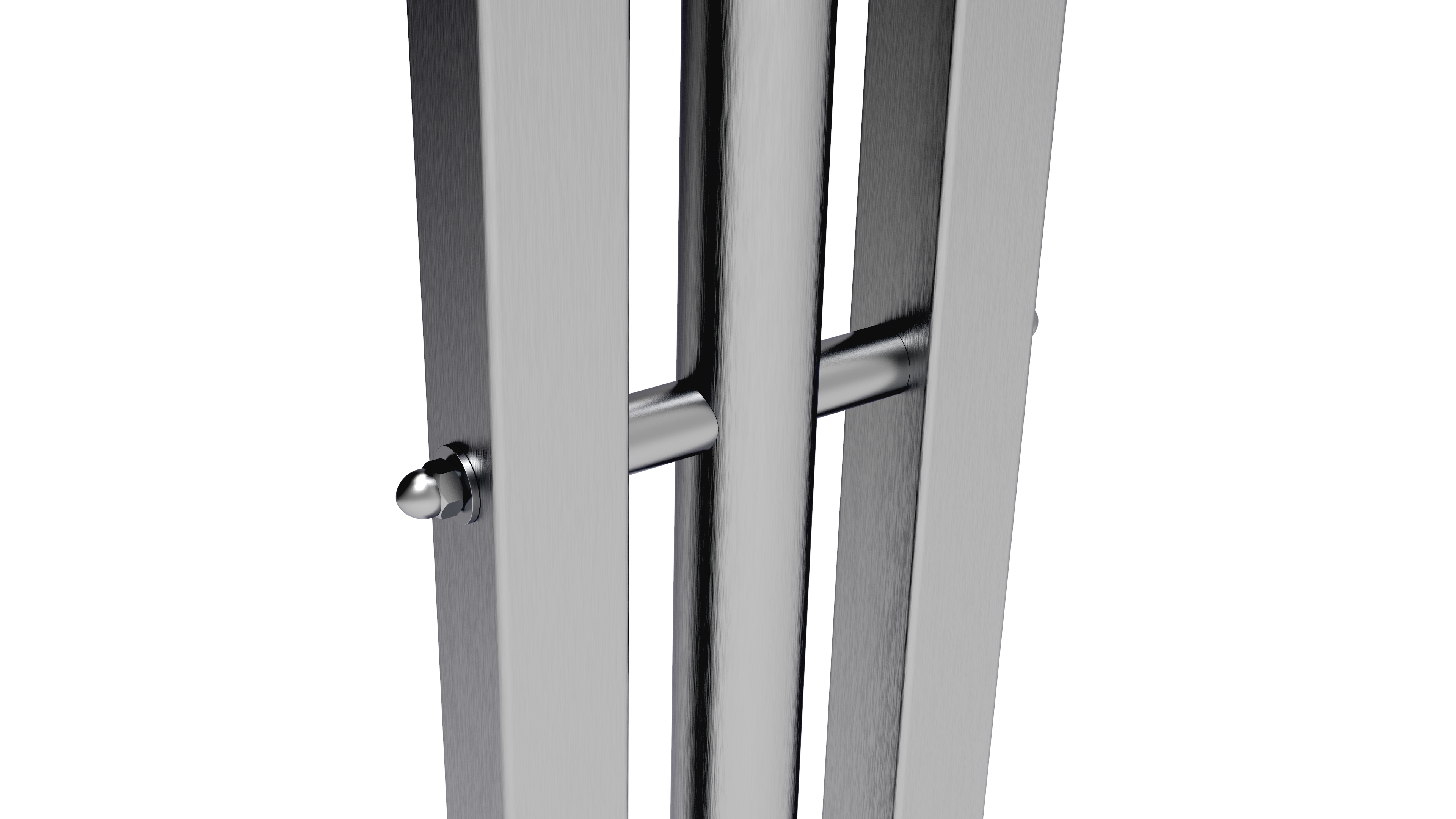

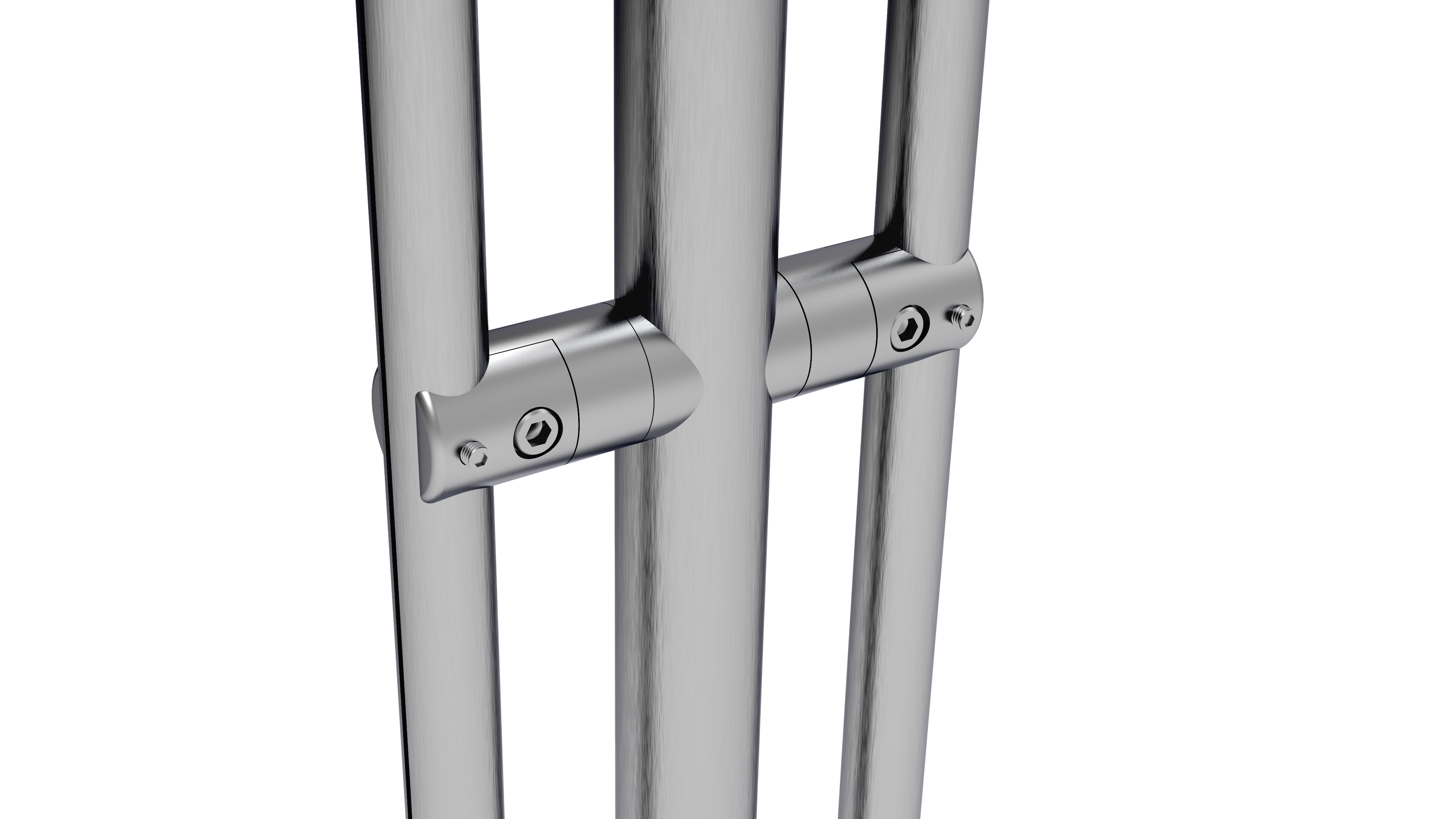

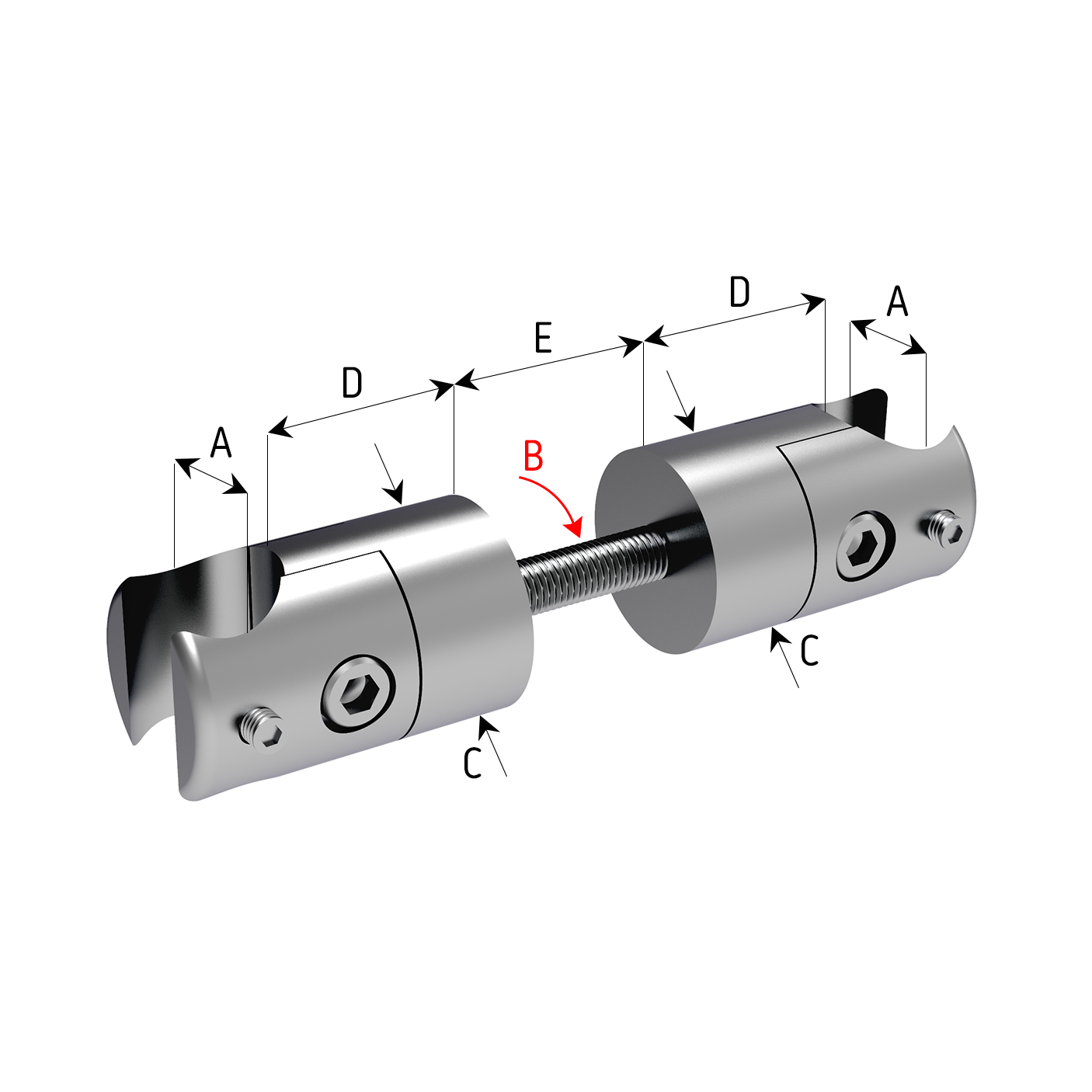

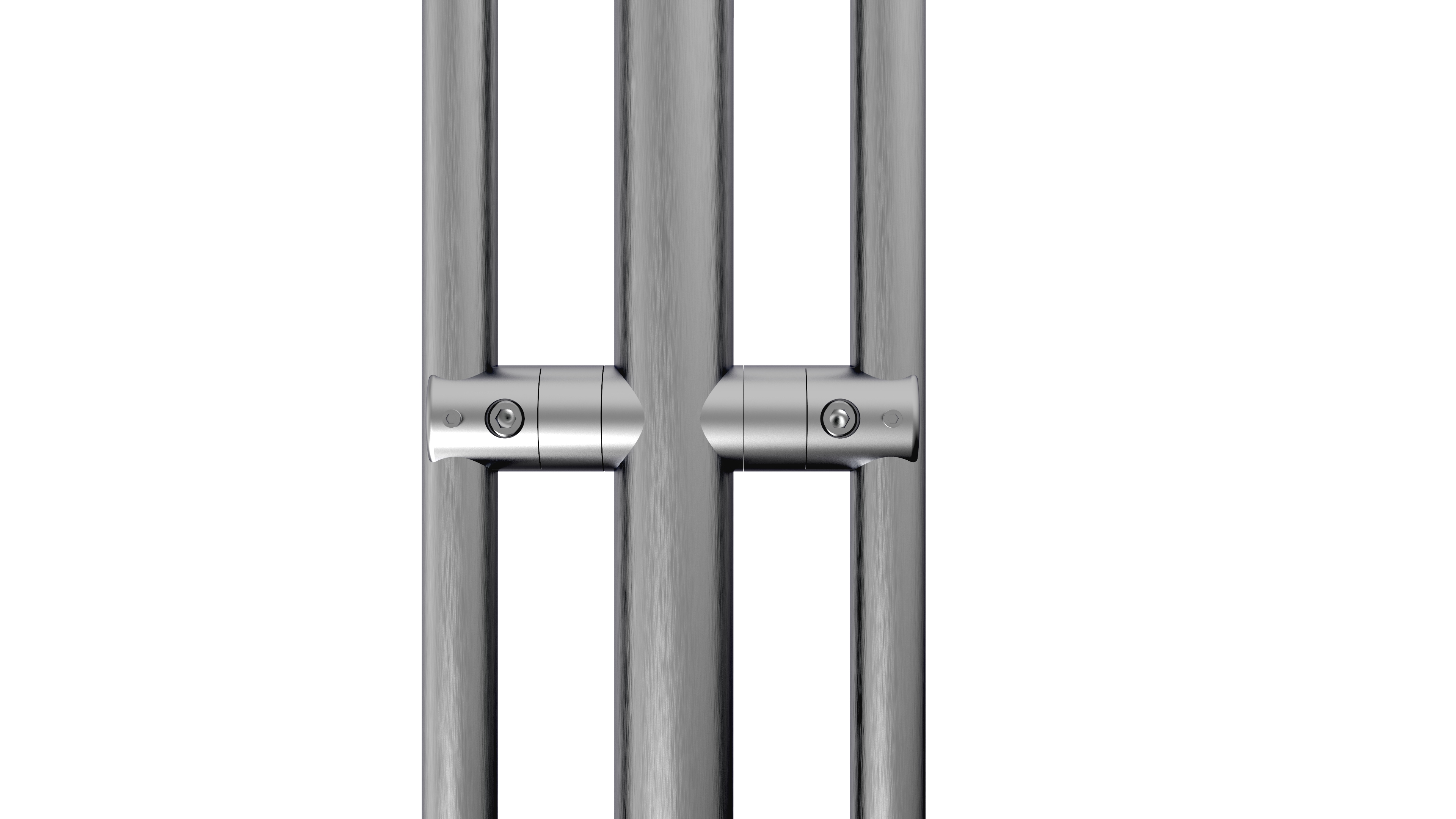

Round Frame Holder Type 2 / For Round Posts / Single Side


Part Number A B C D E
A mm mm mm mm
IN-FH2-0021-033-01 Ø21,3 M6 30 25+2 Ø33,7
IN-FH2-0021-042-01 Ø21,3 M6 30 25+2 Ø42,4
IN-FH2-0026-033-01 Ø26,9 M6 30 25+2 Ø33,7
IN-FH2-0026-042-01 Ø26,9 M6 30 25+2 Ø42,4
Material AISI 316 L


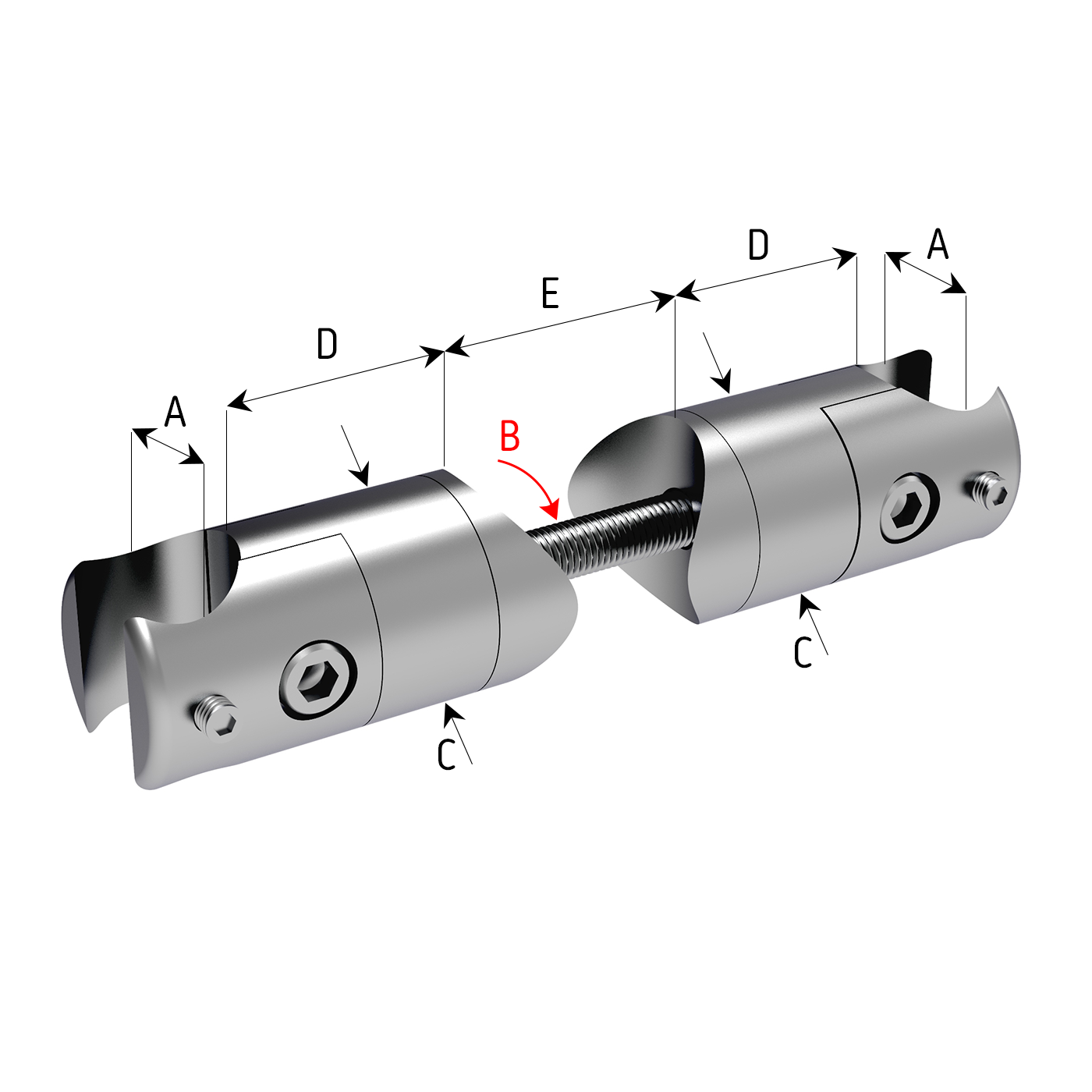

Round Frame Holder Type 2 / For Round Posts / Double Side


Part Number A B C D E
A mm mm mm mm
IN-FH2-0021-033-02 Ø21,3 M6 30 25+2 Ø33,7
IN-FH2-0021-042-02 Ø21,3 M6 30 25+2 Ø42,4
IN-FH2-0026-033-02 Ø26,9 M8 30 25+2 Ø33,7
IN-FH2-0026-042-02 Ø26,9 M8 30 25+2 Ø42,4
Material AISI 316 L


Round Frame Holder Type 2 / For Flat Posts / Single Side


Part Number A B C D E
A mm mm mm mm
IN-FH2-0021-000-01 Ø21,3 M6 30 25 variable
IN-FH2-0026-000-01 Ø26,9 M8 30 25 variable
Material AISI 316 L
Dimension E is variable for 5mm to 50mm posts.


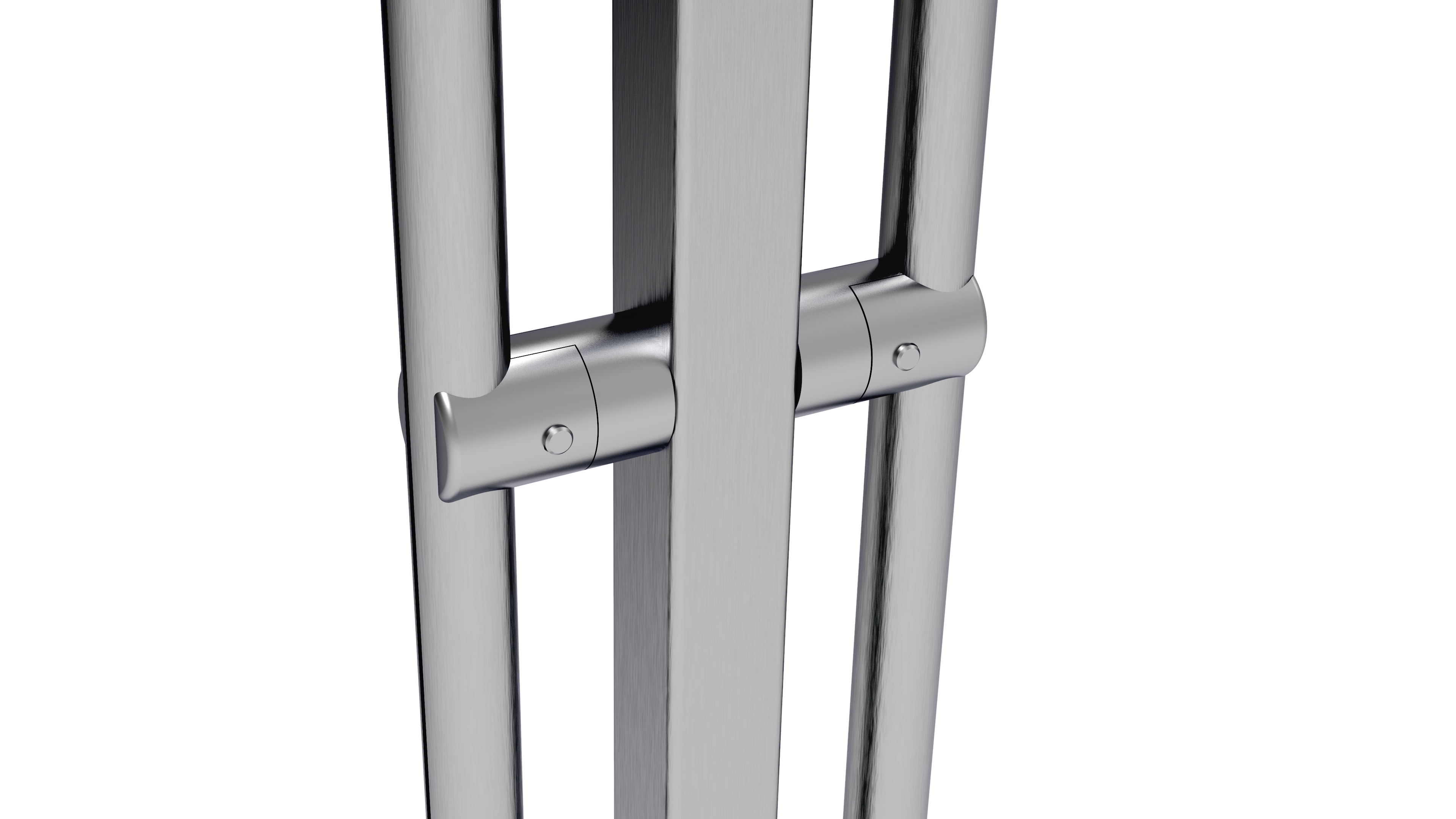

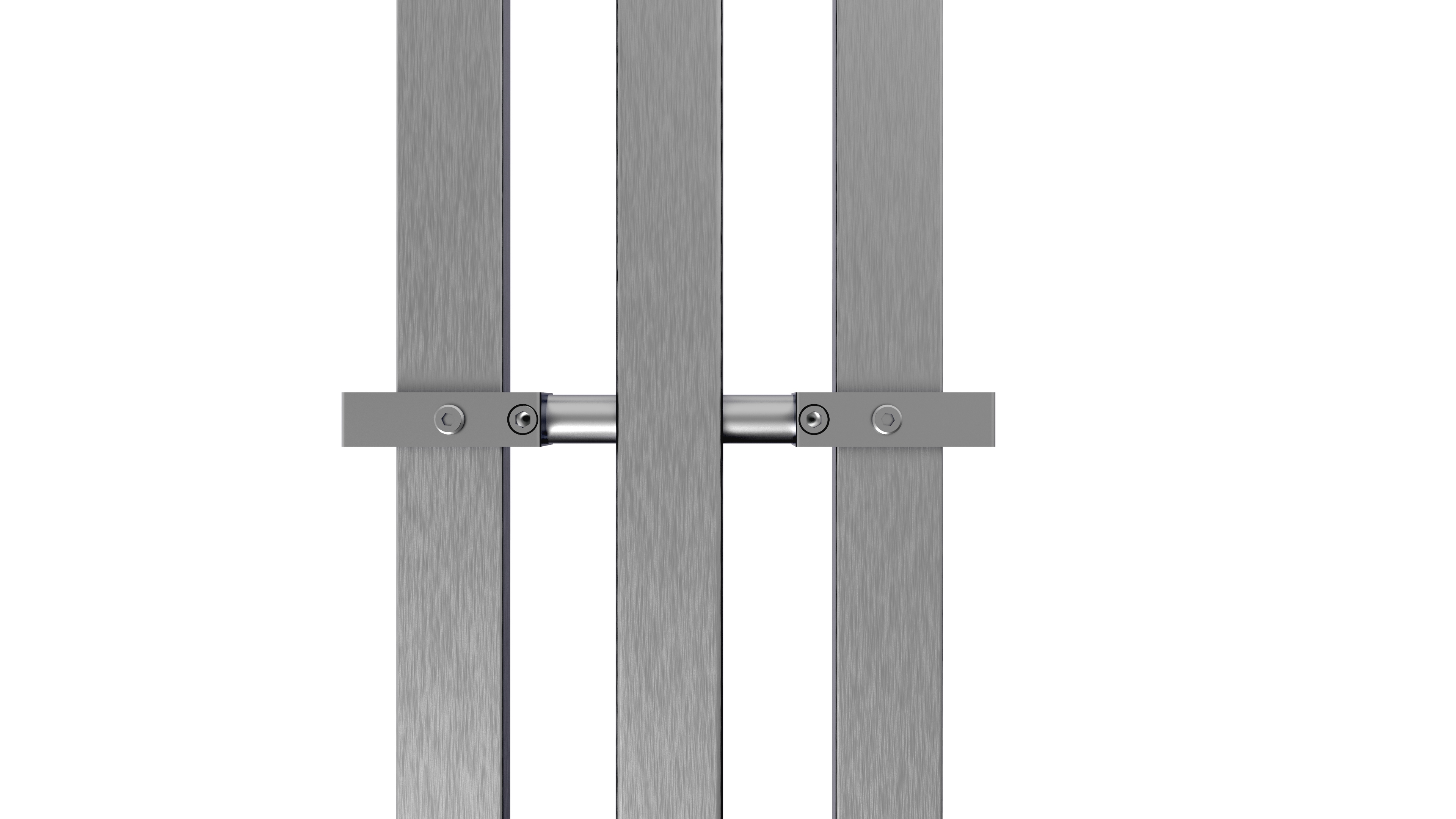

Round Frame Holder Type 2 / For Flat Posts / Double Side


Part Number A B C D E
A mm mm mm mm
IN-FH2-0021-000-02 Ø21,3 M6 30 25 variable
IN-FH2-0026-000-02 Ø26,9 M8 30 25 variable
Material AISI 316 L
Dimension E is variable for 5mm to 50mm posts.

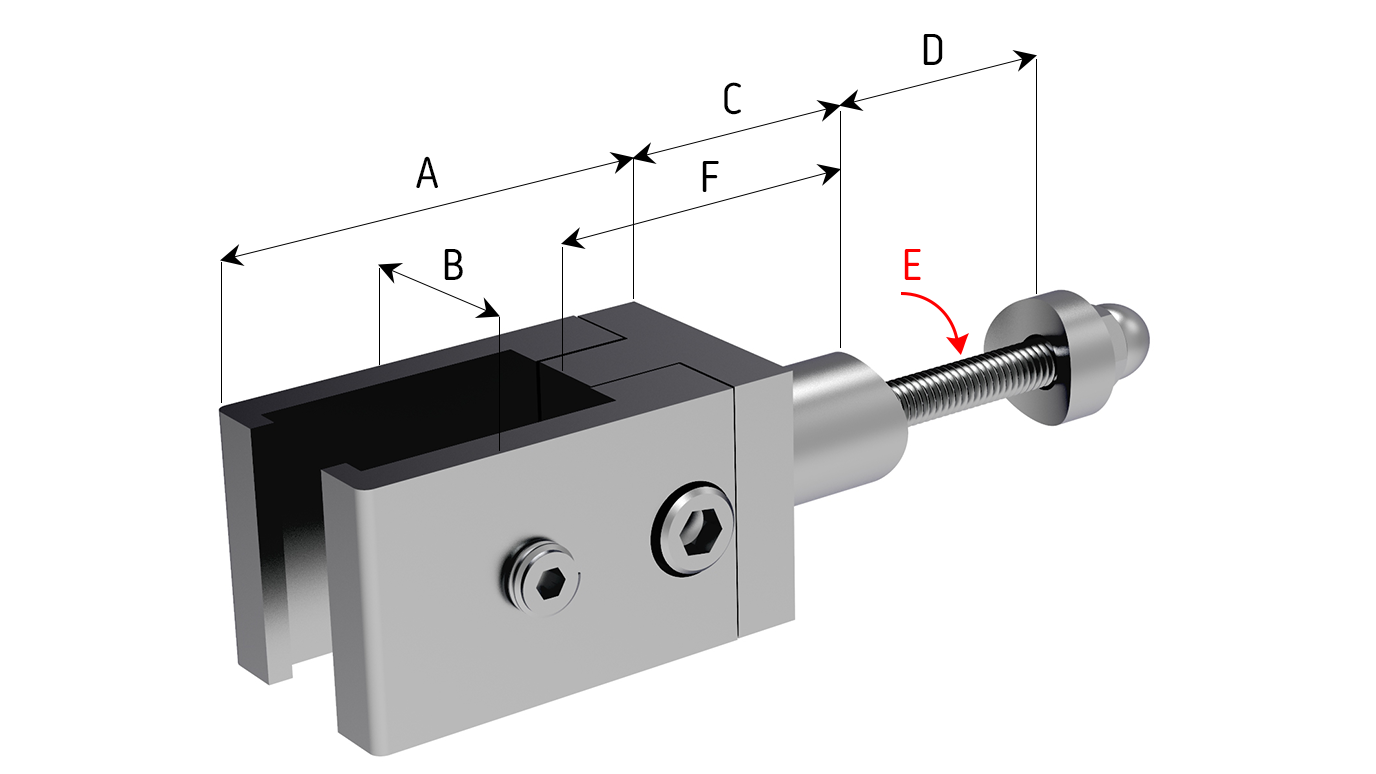

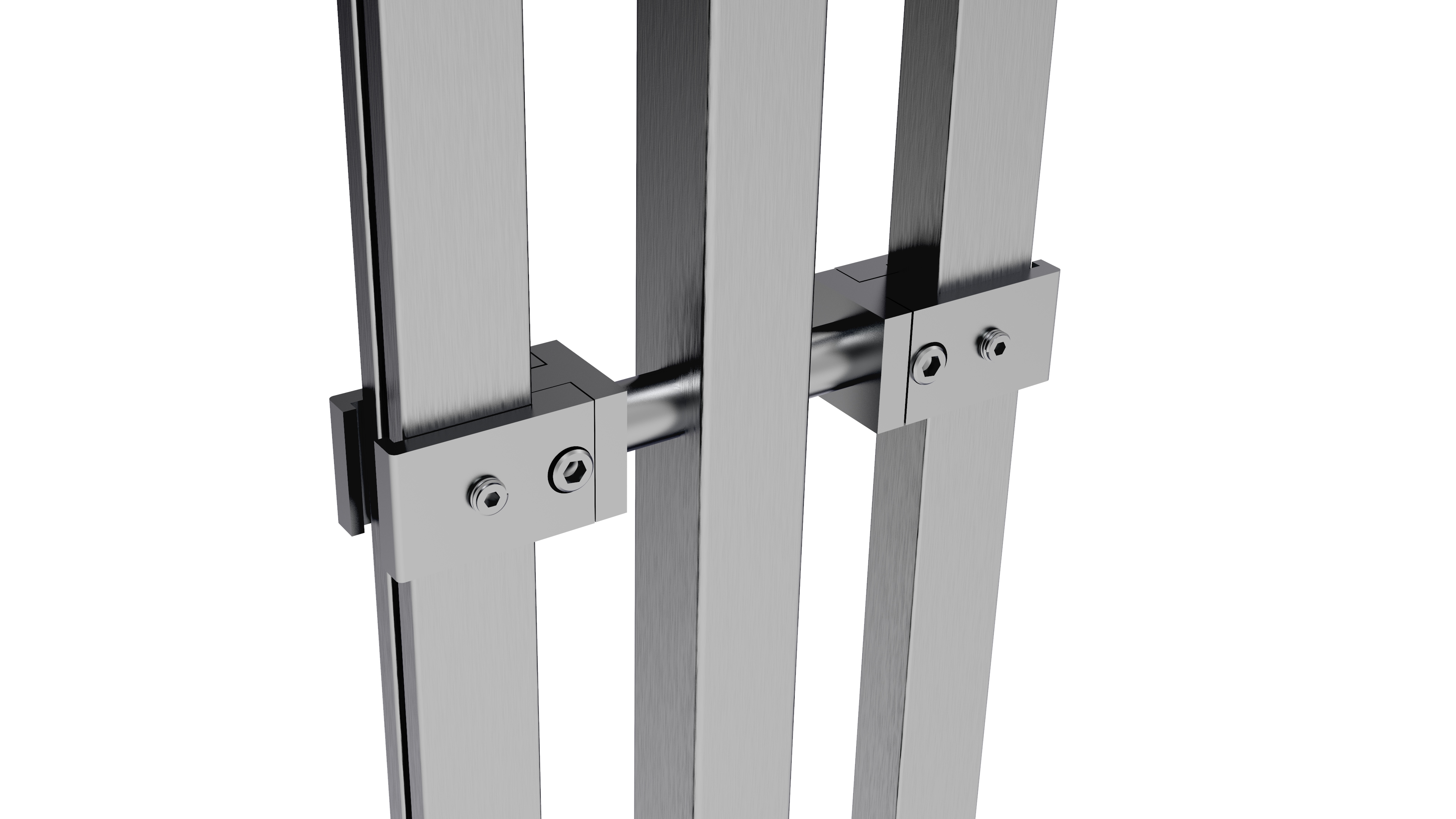

Rectangular Frame Holder / For Round Posts / Single Side


Part Number A B C D E
A mm mm mm mm
IN-FH3-2020-033-01 20x20 M6 16 25 Ø33,7
IN-FH3-2020-042-01 20x20 M6 16 25 Ø42,4
IN-FH3-2525-033-01 25x25 M6 16 25 Ø33,7
IN-FH3-2525-042-01 25x25 M6 16 25 Ø42,4
IN-FH3-3030-033-01 30x30 M8 20 25 Ø33,7
IN-FH3-3030-042-01 30x30 M8 20 25 Ø42,4
Material AISI 316 L


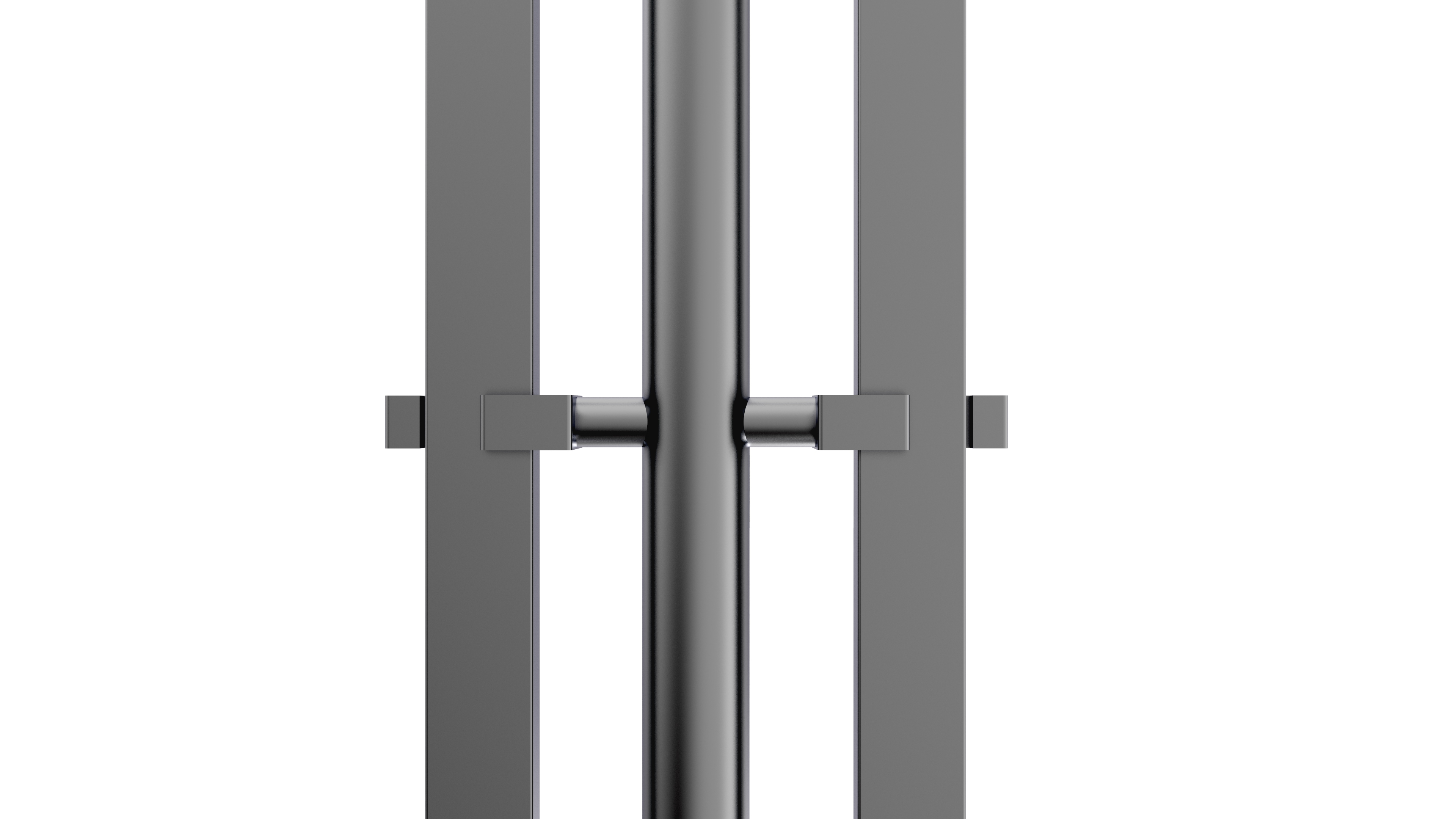

Rectangular Frame Holder / For Round Posts / Double Side


Part Number A B C D E
A mm mm mm mm
IN-FH3-2020-033-02 20x20 M6 16 25 Ø33,7
IN-FH3-2020-042-02 20x20 M6 16 25 Ø42,4
IN-FH3-2525-033-02 25x25 M6 16 25 Ø33,7
IN-FH3-2525-042-02 25x25 M6 16 25 Ø42,4
IN-FH3-3030-033-02 30x30 M8 20 25 Ø33,7
IN-FH3-3030-042-02 30x30 M8 20 25 Ø42,4
Material AISI 316 L


Rectangular Frame Holder / For Flat Posts / Single Side


Part Number A B C D E
A mm mm mm mm
IN-FH3-2020-000-01 20x20 M6 16 25 variable
IN-FH3-2525-000-01 25x25 M6 16 25 variable
IN-FH3-3030-000-01 30x30 M8 20 25 variable
Material AISI 316 L
Dimension E is variable for 5mm to 50mm posts.


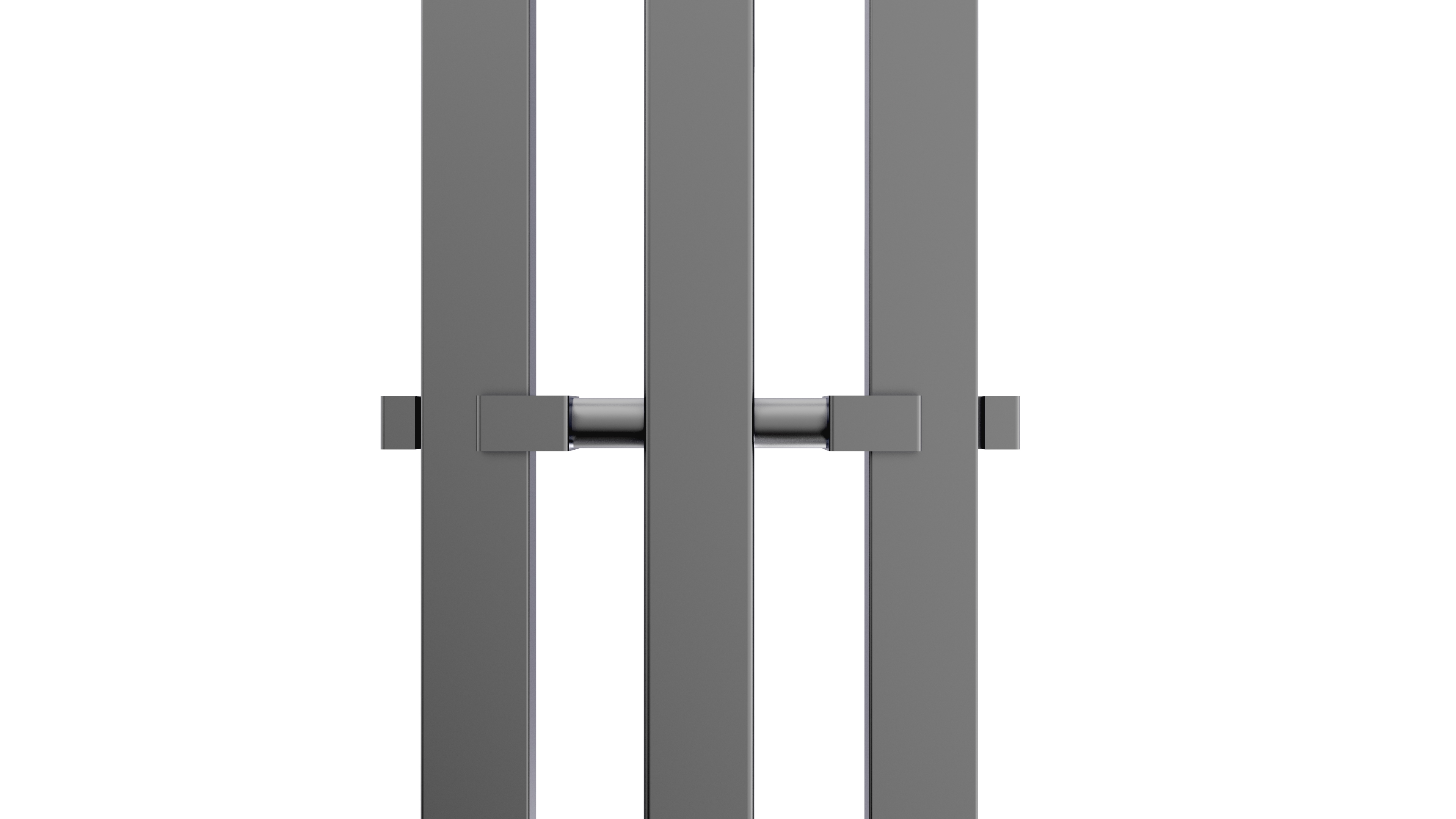

Rectangular Frame Holder / For Flat Posts / Double Side


Part Number A B C D E
A mm mm mm mm
IN-FH3-2020-000-02 20x20 M6 16 25 variable
IN-FH3-2525-000-02 25x25 M6 16 25 variable
IN-FH3-3030-000-02 30x30 M8 20 25 variable
Material AISI 316 L
Dimension E is variable for 5mm to 50mm posts.

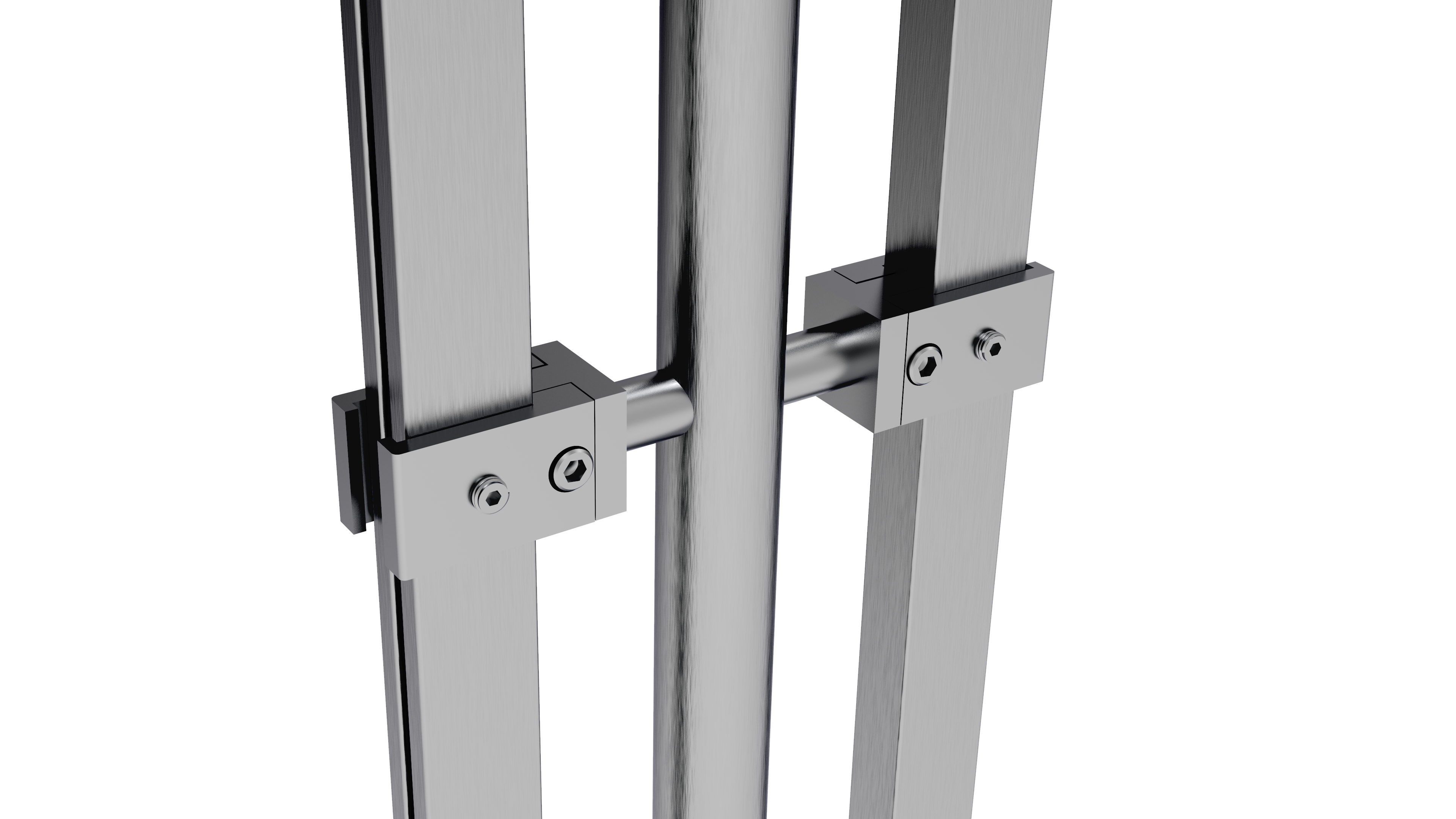

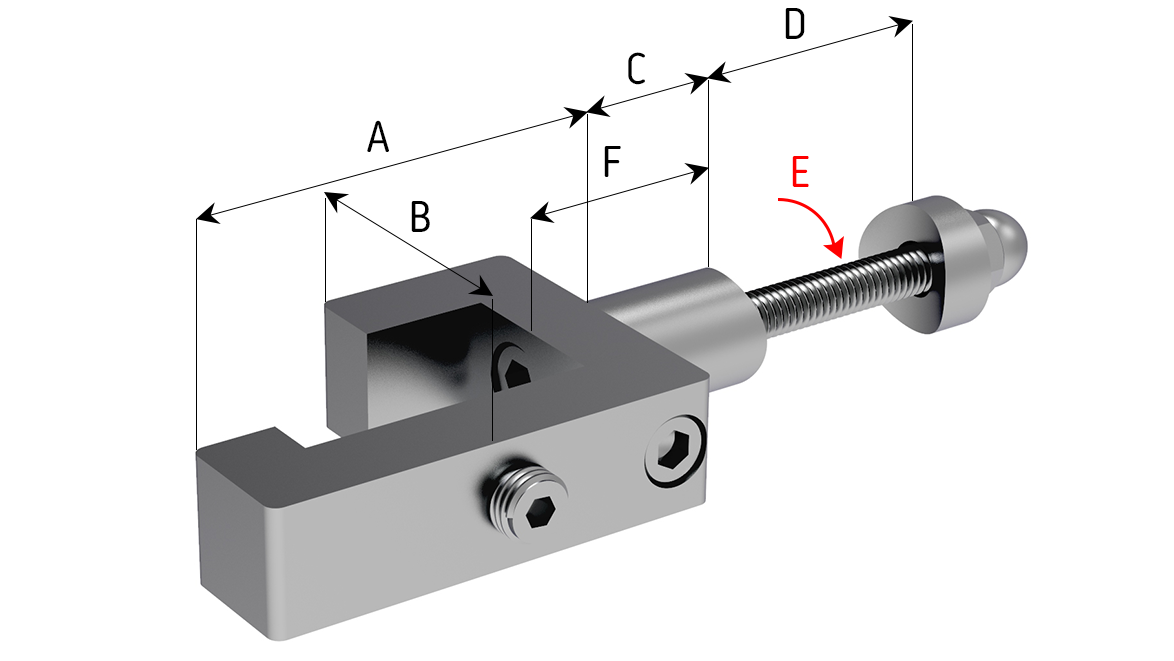

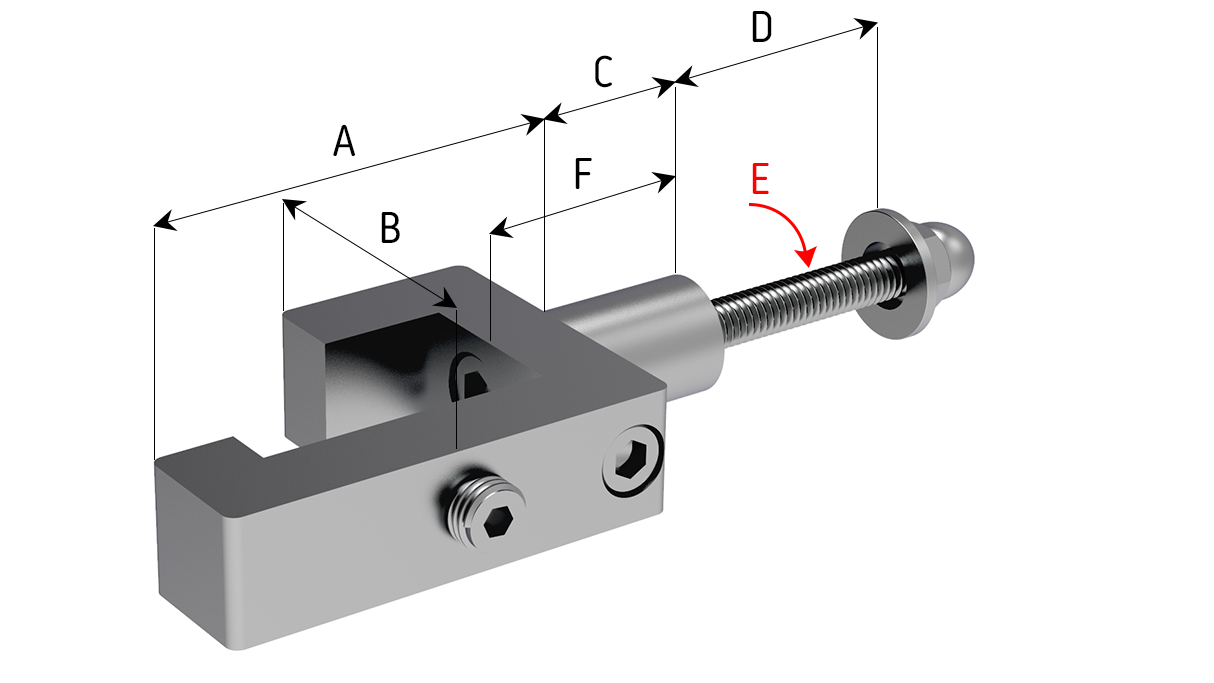

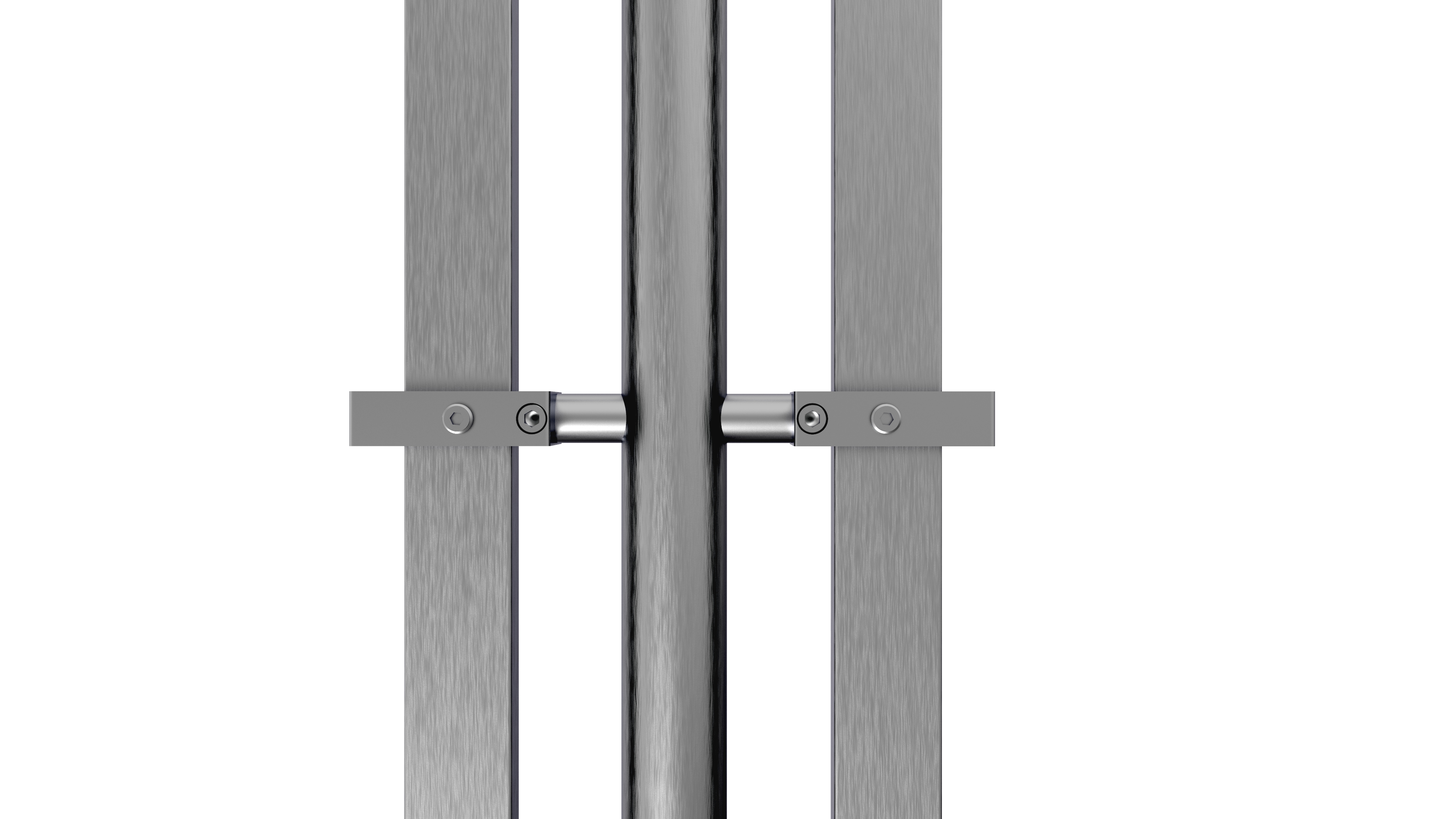

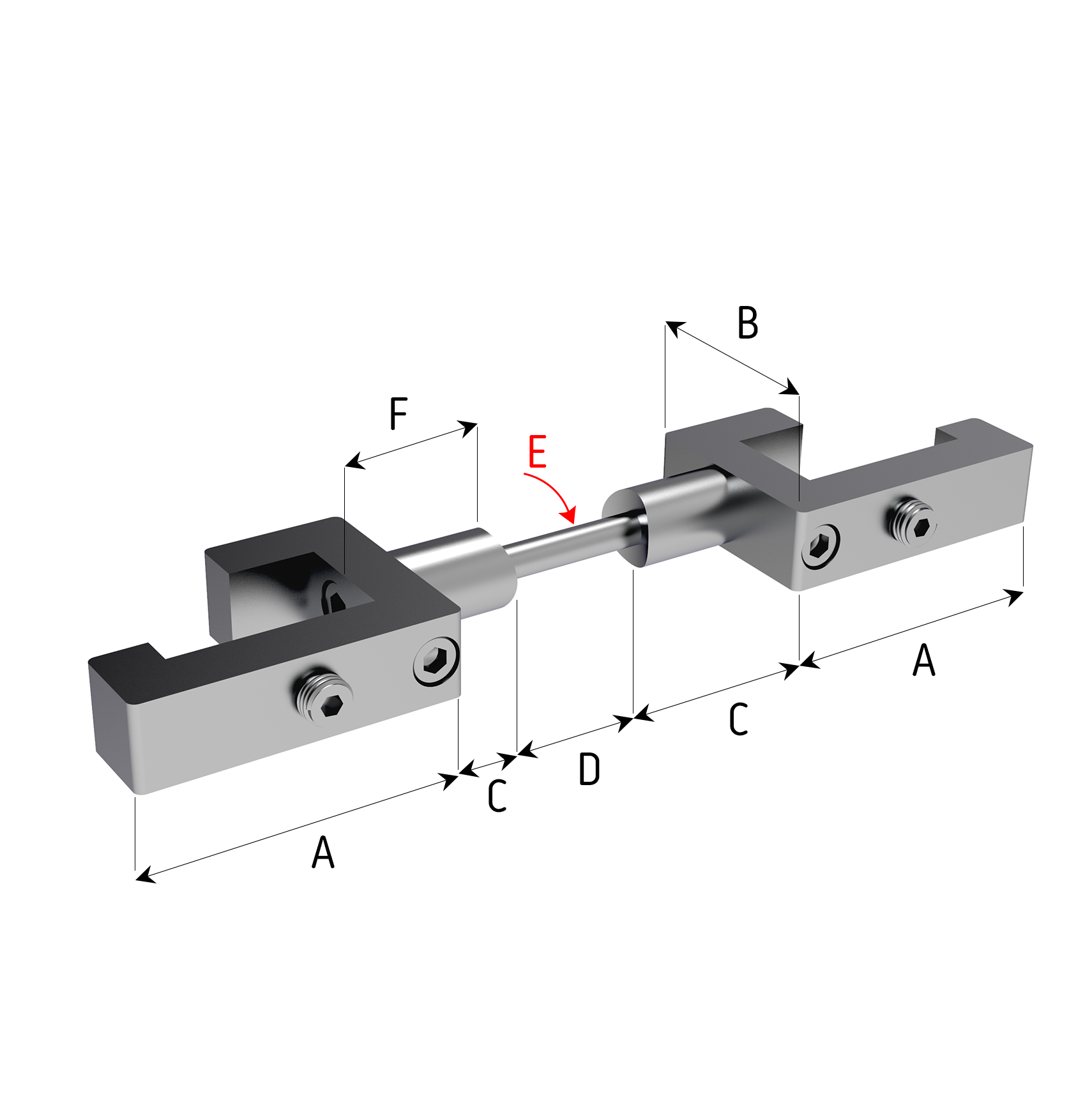

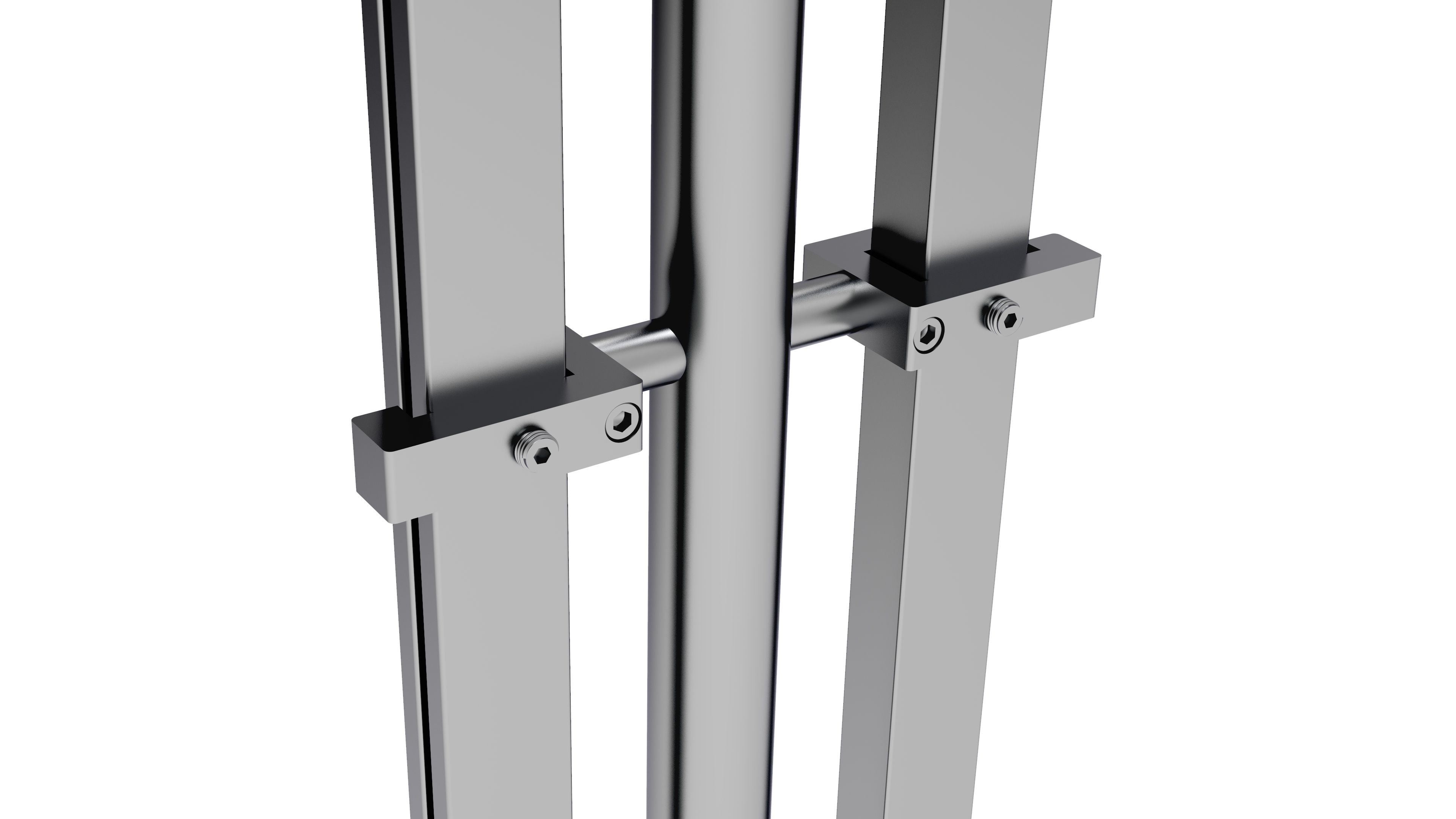

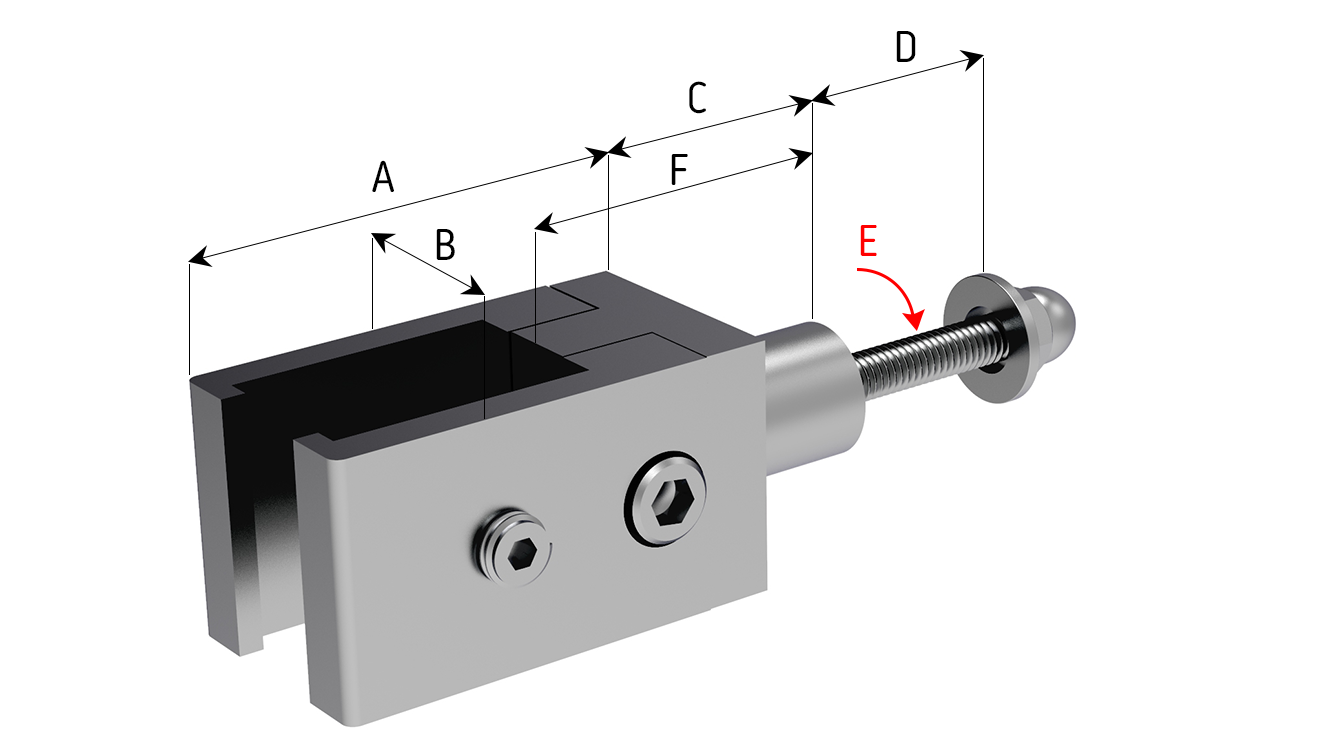

Slotted Rectangular Frame Holder Type 1 / For Round Posts/ Single Side


Part Number A B C D E F
mm mm mm mm mm
IN-FH4-3020-033-01 55 40 20 Ø33,7 M6 30
IN-FH4-3020-042-01 55 40 20 Ø42,3 M6 30
Material AISI 316 L


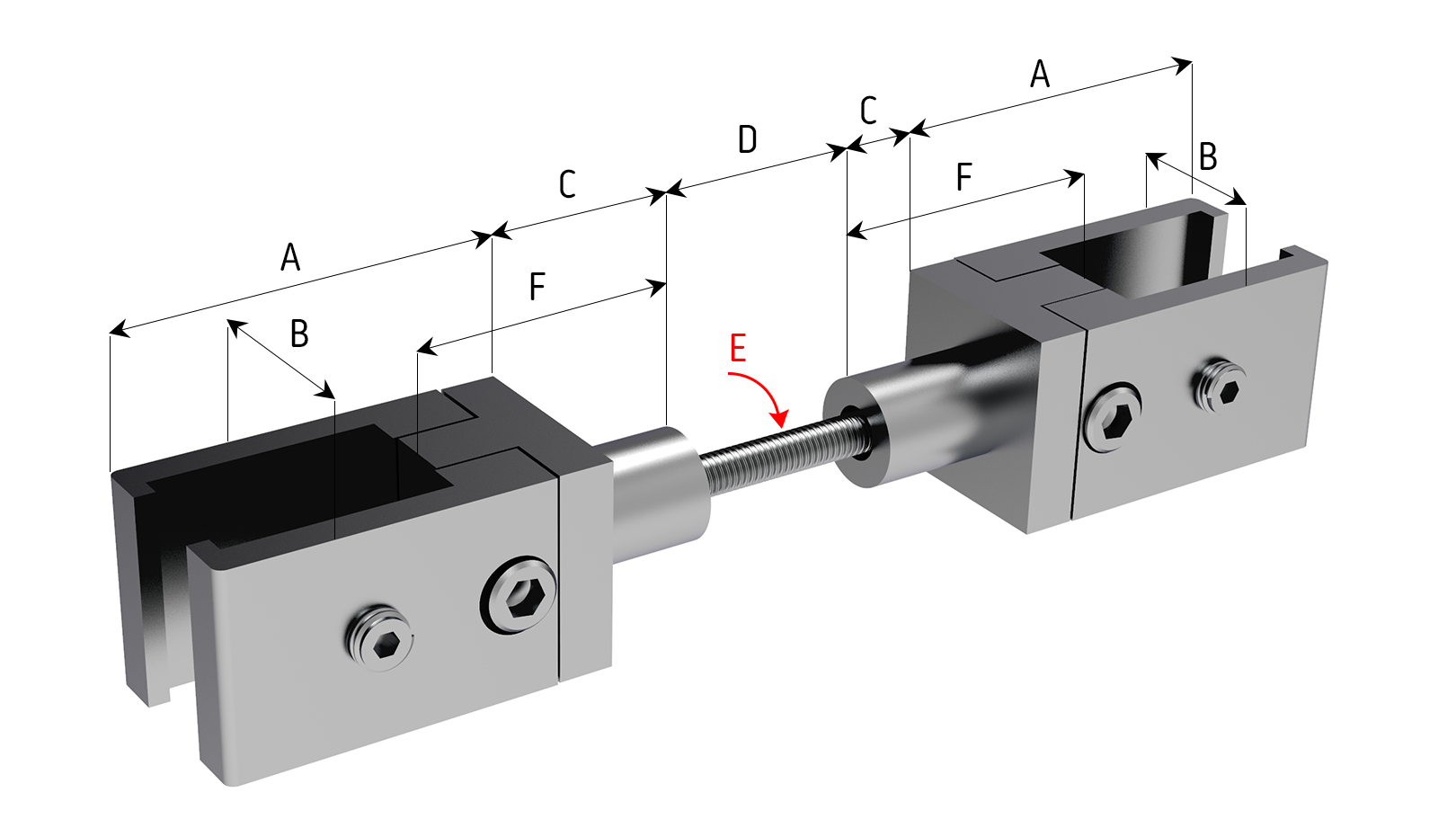

Slotted Rectangular Frame Holder Type 1 / For Round Posts/ Double Side


Part Number A B C D E F
mm mm mm mm mm
IN-FH4-3020-033-02 55 40 20 Ø33,7 M6 30
IN-FH4-3020-042-02 55 40 20 Ø42,3 M6 30
Material AISI 316 L


Slotted Rectangular Frame Holder Type 1 / For Flat Posts/ Single Side


Part Number A B C D E F
mm mm mm mm mm
IN-FH4-3020-000-01 55 40 20 variable M6 30
Material AISI 316 L
Dimension D is variable from 5mm to 50mm posts.


Slotted Rectangular Frame Holder Type 1 / For Flat Posts/ Double Side


Part Number A B C D E F
mm mm mm mm mm
IN-FH4-3020-000-02 55 40 20 variable M6 30
Material AISI 316 L
Dimension D is variable from 5mm to 50mm posts.

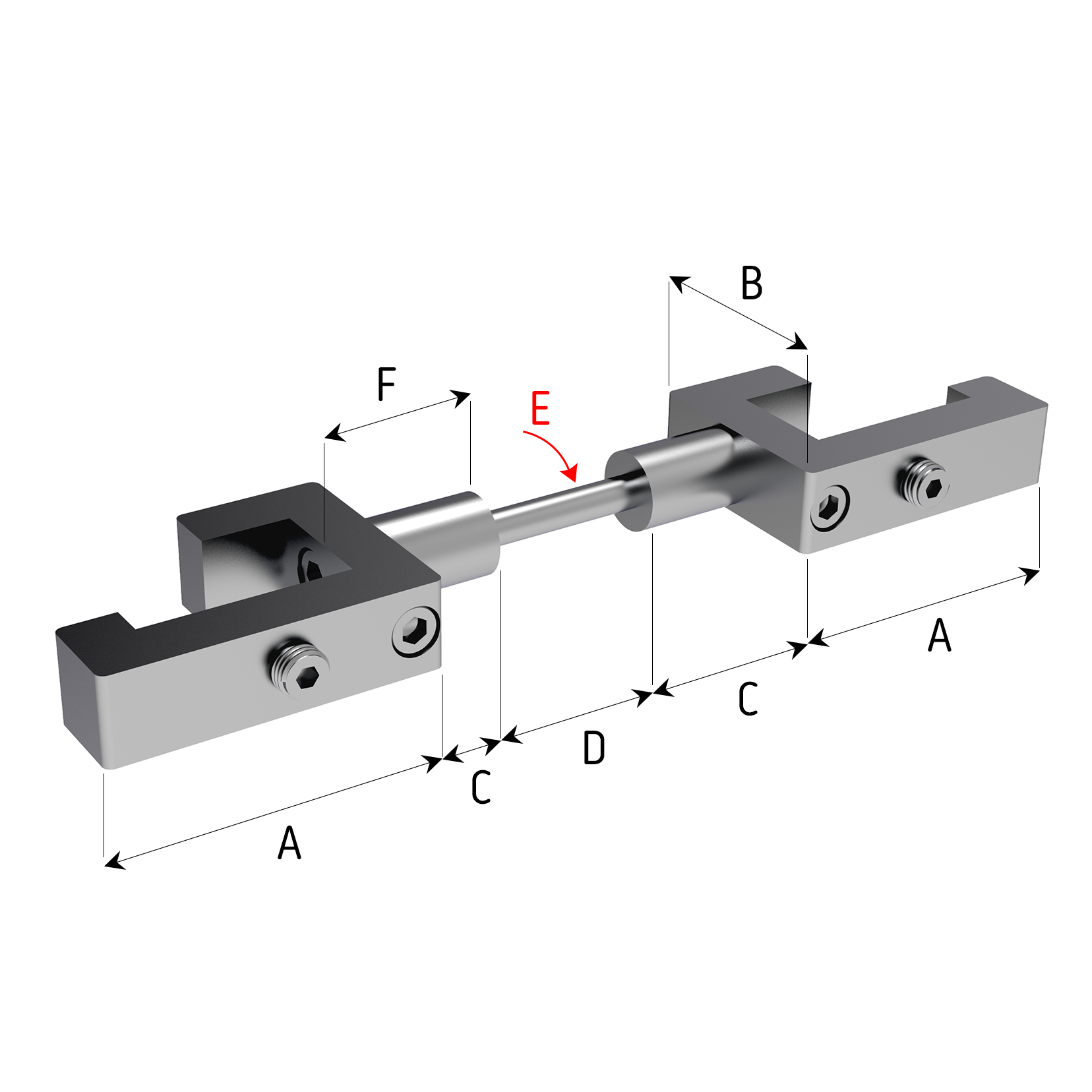

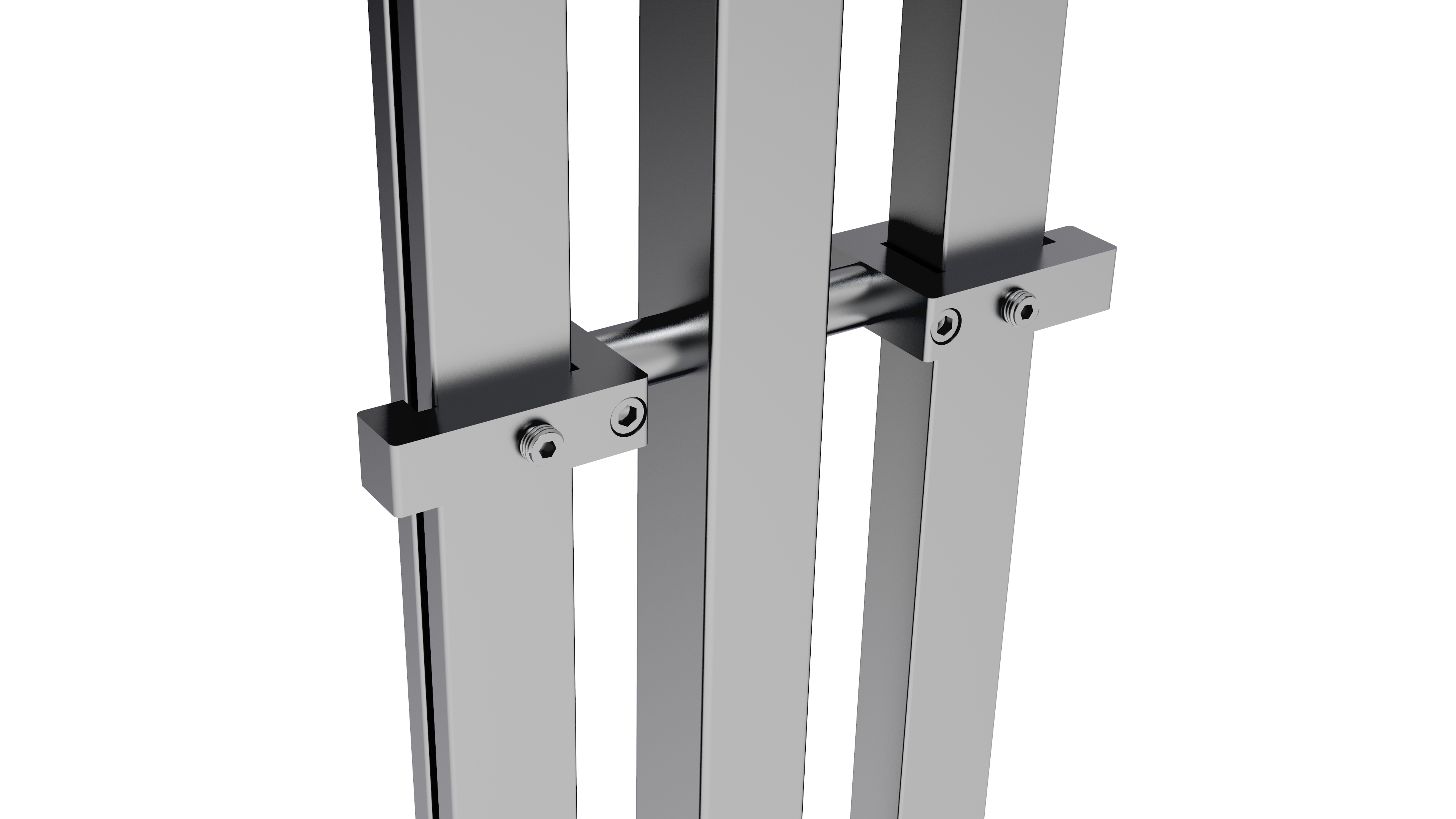

Slotted Rectangular Frame Holder Type 2 / For Round Posts/ Single Side


Part Number A B C D E F
mm mm mm mm mm
IN-FH5-3020-033-01 55 40 20 Ø33,7 M6 40
IN-FH5-3020-042-01 55 40 20 Ø42,3 M6 40
Material AISI 316 L


Slotted Rectangular Frame Holder Type 2 / For Round Posts/ Double Side


Part Number A B C D E F
mm mm mm mm mm
IN-FH5-3020-033-02 55 40 20 Ø33,7 M6 40
IN-FH5-3020-042-02 55 40 20 Ø42,3 M6 40
Material AISI 316 L


Rectangular Slotted Frame Holder Type 2 / For Flat Posts/ Single Side


Part Number A B C D E F
mm mm mm mm mm
IN-FH5-3020-000-01 55 40 20 variable M6 40
Material AISI 316 L
Dimension D is variable from 5mm to 50mm posts.


Rectangular Slotted Frame Holder Type 2 / For Flat Posts/ Double Side


Part Number A B C D E F
mm mm mm mm mm
IN-FH5-3020-000-02 55 40 20 variable M6 40
Material AISI 316 L
Dimension D is variable from 5mm to 50mm posts.
