Internal Thread Fittings

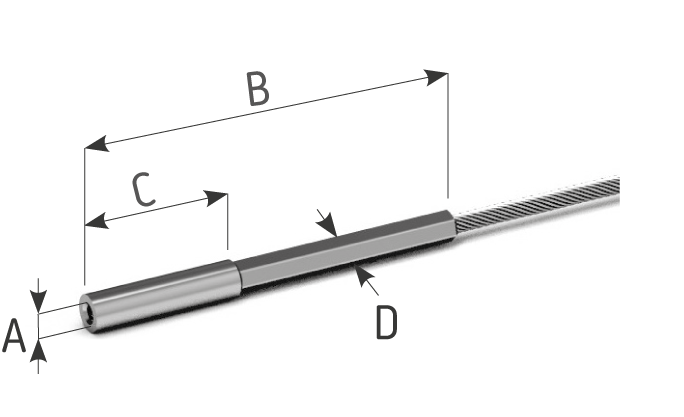

Internal Thread Swaged Fitting
| Part Number | Part Number | Rope | A | B | C | D |
|---|---|---|---|---|---|---|
| Right Threaded | Left Threaded | Ø mm | Thread | mm | mm | mm |
| IR-201-004-00 | IR-201-004-01 | 4 | M6 | 80 | 30 | 7 |
| IR-201-006-00 | IR-201-006-01 | 6 | M8 | 120 | 50 | 10 |
| IR-201-008-00 | IR-201-008-01 | 8 | M10 | 180 | 60 | 13 |
| IR-201-010-00 | IR-201-010-01 | 10 | M12 | 190 | 80 | 18 |
| IR-201-012-00 | IR-201-012-01 | 12 | M16 | 220 | 100 | 25 |
| IR-201-014-00 | IR-201-014-01 | 14 | M18 | 260 | 110 | 28 |
| IR-201-016-00 | IR-201-016-01 | 16 | M20 | 280 | 120 | 30 |

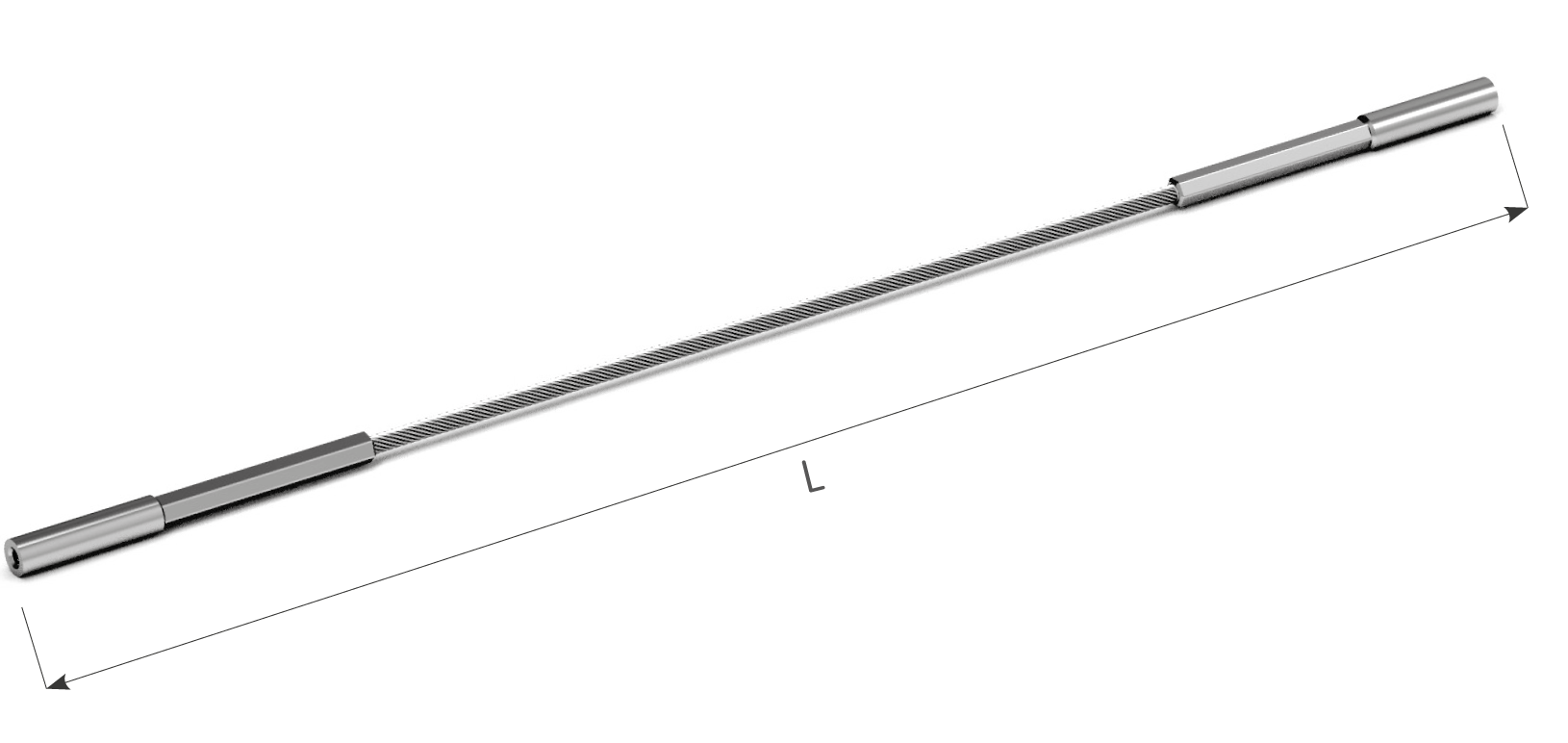

Both Sides Internal Thread Swaged Fitting
| Part Number | Rope | A | B | C | D |
|---|---|---|---|---|---|
| Ø mm | Thread | mm | mm | mm | |
| IRS-210-004-00 | 4 | M6 | 80 | 30 | 7 |
| IRS-210-006-00 | 6 | M8 | 120 | 50 | 10 |
| IRS-210-008-00 | 8 | M10 | 180 | 60 | 13 |
| IRS-210-010-00 | 10 | M12 | 190 | 80 | 18 |
| IRS-210-012-00 | 12 | M16 | 220 | 100 | 25 |
| IRS-210-014-00 | 14 | M18 | 260 | 110 | 28 |
| IRS-210-016-00 | 16 | M20 | 280 | 120 | 30 |

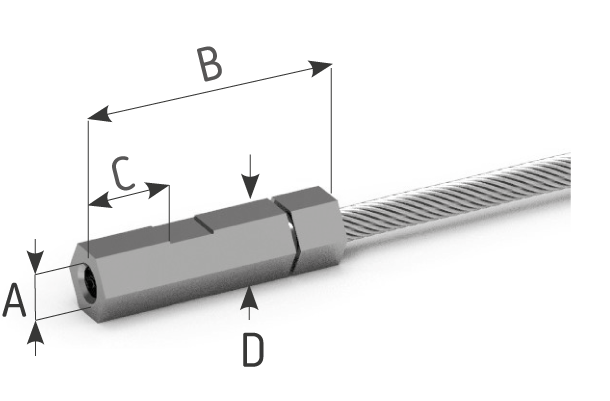

Internal Thread Swageless Connection
| Part Number | Part Number | Rope | A | B | C | D |
|---|---|---|---|---|---|---|
| Right Threaded | Left Threaded | Ø mm | Thread | mm | mm | mm |
| IR-202-004-00 | IR-202-004-01 | 4 | M6 | 50 | 18 | 13 |
| IR-202-006-00 | IR-202-006-01 | 6 | M8 | 55 | 20 | 15 |
| IR-202-008-00 | IR-202-008-01 | 8 | M10 | 90 | 30 | 19 |
| IR-202-010-00 | IR-202-010-01 | 10 | M14 | 110 | 45 | 27 |

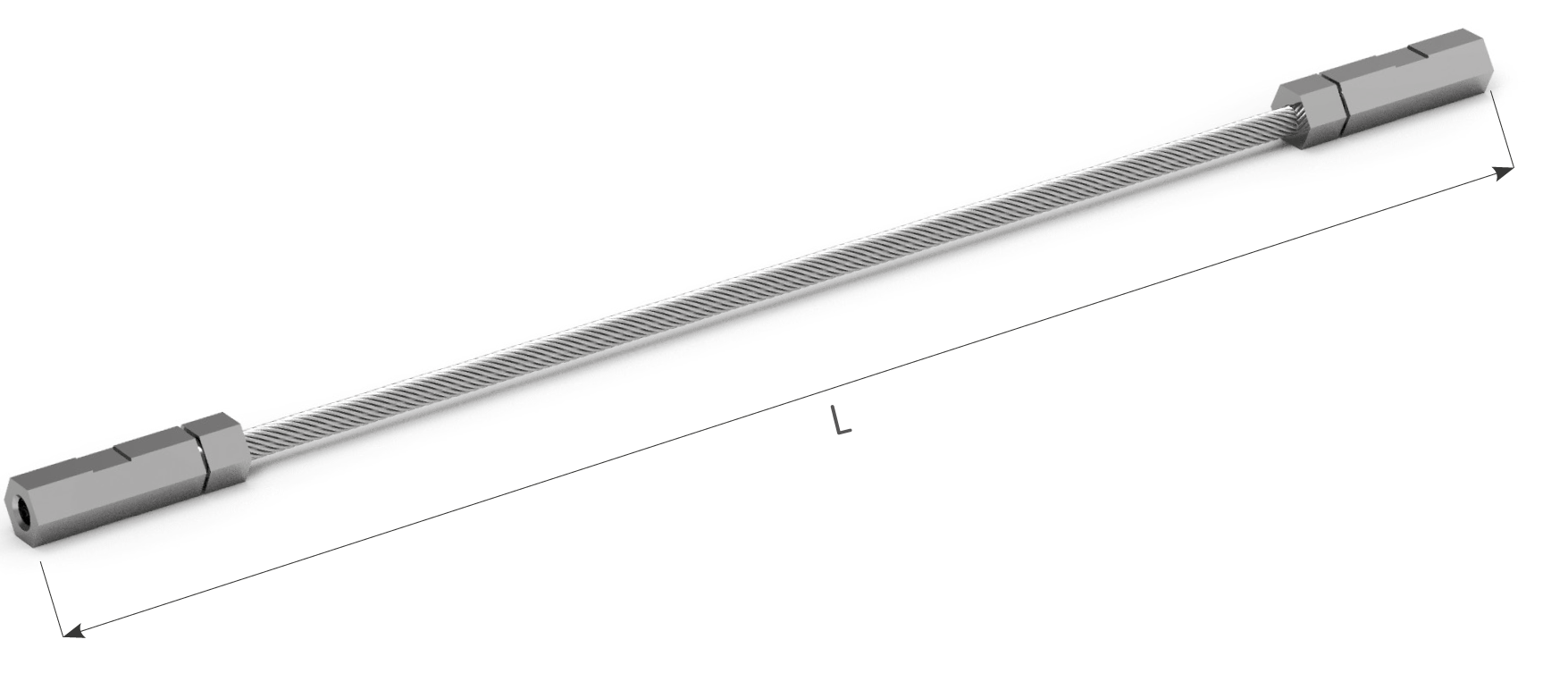

Both Sides Internal Thread Swageless Connection
| Part Number | Rope | A | B | C | D |
|---|---|---|---|---|---|
| Ø mm | Thread | mm | mm | mm | |
| IRS-220-004-00 | 4 | M6 | 50 | 18 | 13 |
| IRS-220-006-00 | 6 | M8 | 55 | 20 | 15 |
| IRS-220-008-00 | 8 | M10 | 90 | 30 | 19 |
| IRS-220-010-00 | 10 | M14 | 110 | 45 | 27 |
