Round Frame System

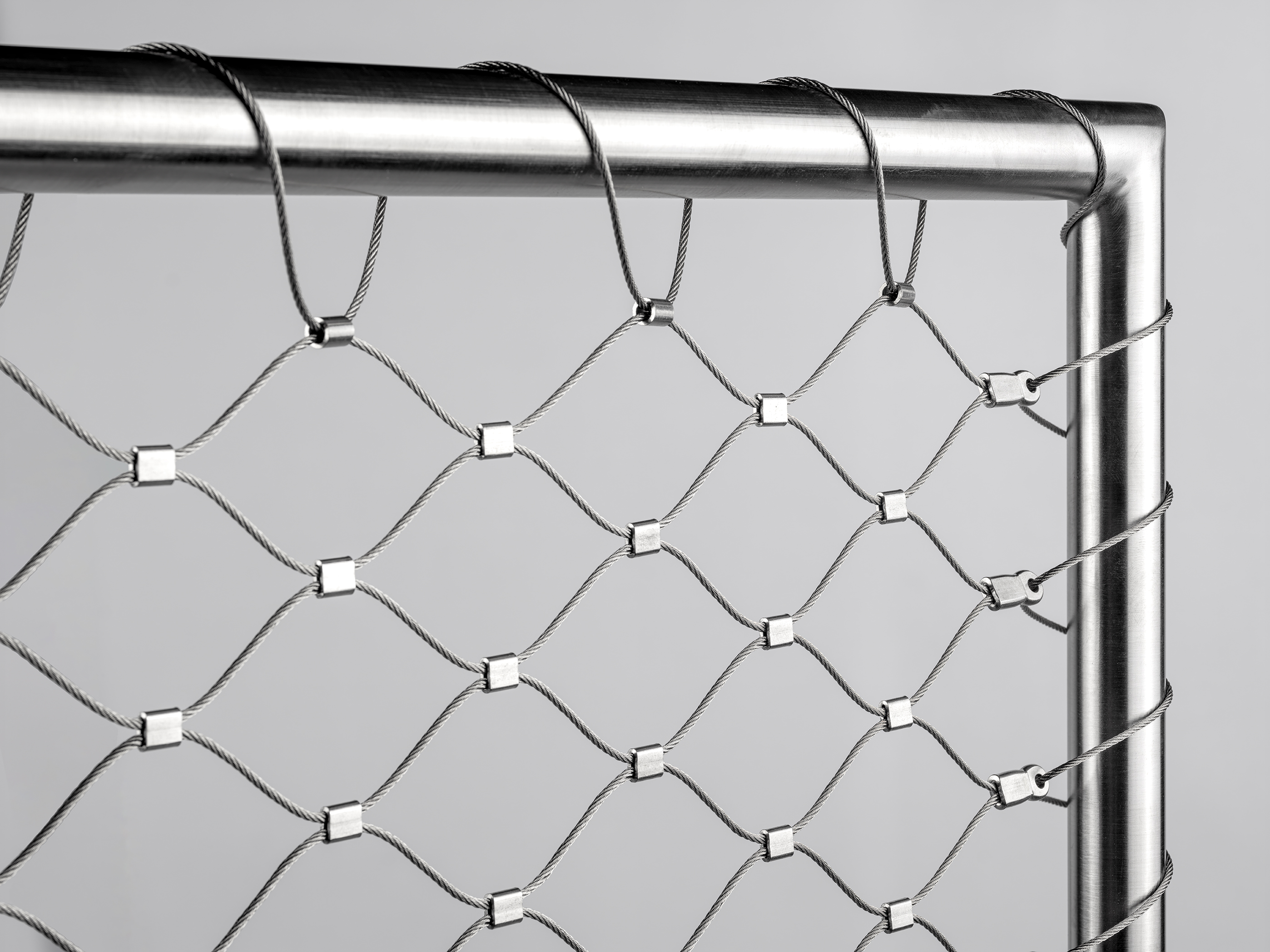

inoxnet® round frame systems are manufactured from stainless steel round tubes, available in a range of diameters. The versatile nature of round tubes allows for the creation of frames in various shapes, including round, curved, parallelogram, and rectangular shapes. The stainless steel mesh is securely fastened by winding the installation cable around the tube, resulting in a visually distinctive cable presence along the frame. These systems are preferred for their ease of installation and economic solution possibilities.
Tube Dimensions
Ø21,3mm, Ø26,9mm, Ø33,7mm, Ø42,4mm in standard.Special diameters can be also accommodated based on projects requirements.
I-NET® Cable Mesh Opening
Rope diameter: 1,5mm, 2mm, 3mmBalustrade Systems: 25-80mm
Safety Net Systems: 80-120mm
Greenery Systems: 120-180mm
I-NET® Cable Mesh Diamond Direction
Horizontal and Vertical
Frame Finishes
Satin finishedMirror polished
Custom RAL codes upon request
Additional Features:
Half-eye configuration availableDiverse range of shapes and geometries possible
Low corrosion risk ensures long-lasting performance
(frame tubes are entirely closed)
