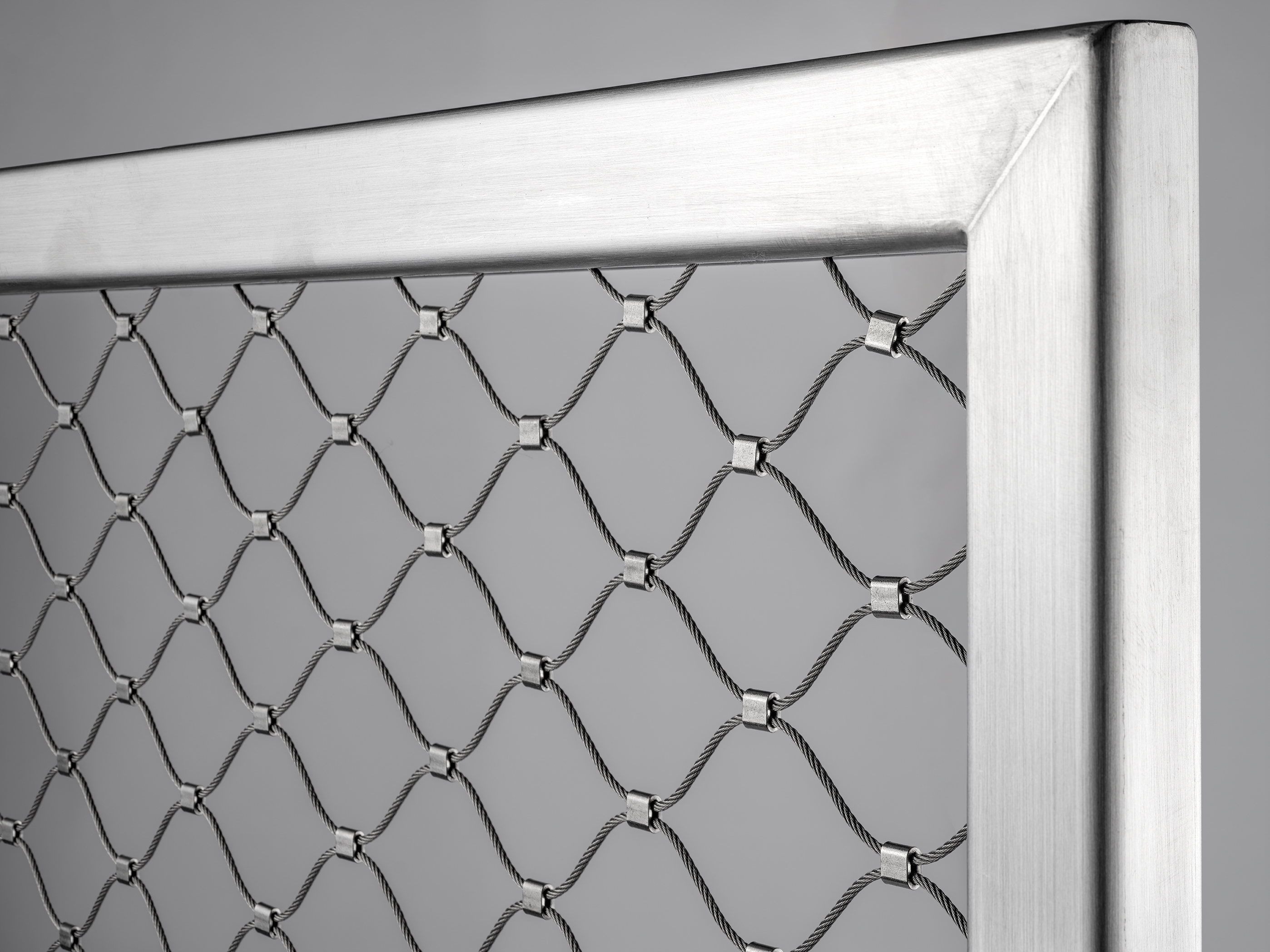

Slotted Rectangular Frame System

inoxnet^® slotted rectangular frame systems are manufactured from 30x20x1,5mm slotted stainless steel profiles, precisely tailored to specific dimensions. The distinctive feature of these systems lies in the integration of a concealed installation rope within the slotted tube frame. This ingenious design ensures that the installaiton/lacing rope remains hidden, contributing to an exceptionally elegant appearance.

Tube Dimensions

30x20x1,5mm

I-NET^® Cable Mesh Opening

Rope diameter, 1,5mm
Balustrade Systems, 25-80mm

I-NET^® Cable Mesh Diamond Direction

Horizontal and Vertical

Frame Finishes

Satin finished
Mirror polished
Custom RAL codes upon request

Additional Features:

Hidden installation ropes
No irritation when handling

Limitations

Limited geometry
Limited choice of net dimensions
Higher corrosion risk
(Deposits inside the frame profile could contribute to corrosion issues over time)
